CirCon is an automatic balancing valve for balancing the circulation flows of hot water systems.

The valve automatically regulates the temperature of the circulating water, ensuring even heating throughout the entire hot water system. The circulation temperature can be set on the valve's scale within a range from 37°C to 65°C.

All parts of the CirCon valve that come into contact with hot water are made from AISI 316 stainless steel, ensuring maximum corrosion resistance of the valve.

Advantages

• All parts of the valve that come into contact with water are made from stainless steel.
• Insulation, which can be ordered with the valve, reduces heat loss.
• The thermostatic element is located outside the contact with circulating water. Placement outside the contact with water eliminates many problems.
• Certified according to the Danish standard for drinking water.
• Each valve is individually calibrated.
• The thermostatic element can be dismantled without draining the system.
• An integrated magnifying glass facilitates the reading of preset settings.

Functions

• Valve setting range from 37°C to 65°C with an accuracy of +/- 2°C
• Factory setting at 52.5°C

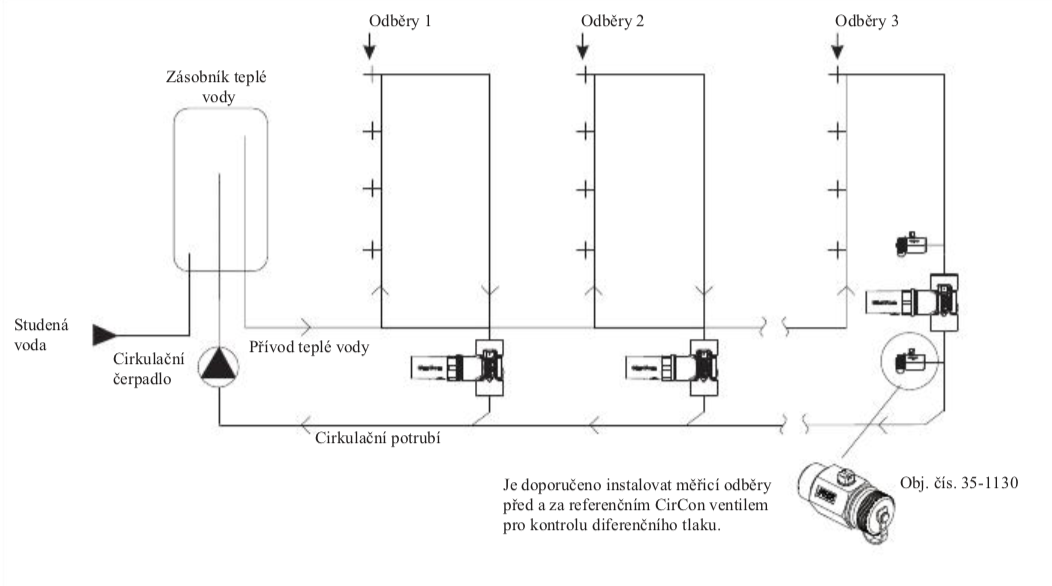

Example of Use
