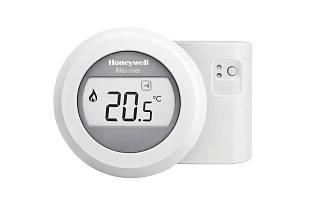

The Y87 is a series of modern digital room thermostats available in both wired and wireless versions, with the option of remote access via the Honeywell RFG100 internet gateway. The room units of all wireless models are powered by 2xAA alkaline batteries. Possible applications include direct autonomous control of the heat source or use as a sensor for measuring and setting the temperature within a multi-zone control system. In the latter case, they are intended for Evohome zone controllers and the HCE80 underfloor heating controller.

Main Features

• Single-zone thermostat with the option to expand remote access via the Connected mobile app
• Connected models allow control and settings via the Honeywell Total Connect Comfort Connected app for smartphones and tablets, modern stylish design suitable for any interior
• Simple intuitive operation with a large rotating backlit display
• Control accuracy of +/- 0.5 °C
• Service mode allows changing the max. and min. set temperature
• A range of models available for different installation methods and uses
• Battery-powered models use 2 AA alkaline batteries with a minimum lifespan of 2 years and are equipped with a battery depletion indicator
• Wireless models operate based on 2-way communication at a frequency of 868 MHz with a typical signal range of 30m in standard residential buildings
• Wireless control of the heat source is carried out via the BDR91 relay switch

Power Supply

• Thermostat (control unit) is powered by 2 × AA alkaline batteries (1.5 V).

• Receiver / relay switching unit (BDR91) is not battery-powered - it connects directly to the 230 V mains voltage.
