Name: SOVIK Kotelnik Boiler Fault Signalling Kit (SOVIK_KOTELNIK)
Brand: SOVIK
Price: 1291.26 EUR
Availability: InStock

The SOVIK Kotelník fault signalling and control system provides continuous monitoring and indication of operating, fault and emergency states of heat sources and related technologies. The device is designed in line with modern safety requirements for gas boiler rooms and heat sources with an output above 100 kW, or from 50 kW.

Application: Monitoring of technology assemblies in boiler rooms and heat exchanger stations.
Installation: Modular design for mounting in a control panel on a DIN rail. Preconfigured logic for standard applications enables immediate commissioning without the need for programming.
HMI interface: Local display of system statuses and parameters via an integrated terminal.
Connectivity and management:Native support for a mobile app for direct monitoring.

Plug and Play

The system is designed as a complete solution for quick installation in a control panel and, for common applications, is factory-prepared in Plug and Play mode. For most uses in boiler rooms, there is no need to reconfigure the Kotelník system. The boiler room status can be monitored locally via the clear HMI display or via the SOVIK mobile app.

If required, Kotelník can be adapted to suit the boiler room’s needs.

Plug & Play wiring of the SOVIK Kotelník control unit

Legislative standards and monitoring features of SOVIK Kotelník

Meet the legislative requirements

The SOVIK Kotelník system fully complies with the requirements of the ČSN EN 12828+A1 standard for hot-water heating systems with heat sources above 50 kW (or 100 kW). To ensure compliance with the applicable standard for gas boiler rooms ČSN 07 0703 and the gas industry rules TPG 904 01, the system is prepared to be supplemented with external detectors for flammable gas leaks and CO. Once these elements are integrated, SOVIK Kotelník forms a comprehensive safety node meeting all current legislative requirements.

Transition to a new generation

The Sovik Kotelník fault signalling system directly follows on from the tradition of Siemens Kotelník 1.0 and Siemens Kotelník 2 fault signalling systems. Sovik Kotelník is, as ever, built on high-quality Siemens Climatix hardware, enabling long-term use in industrial conditions.

What’s new?

Phone app – fully functional free of charge on the local network
Phone app – available from anywhere with a purchased licence
Energy consumption readings via an M-Bus module
New compact hardware – enables the use of shallow control panels
Clear HMI display included in every package
Seamless configuration of the new SMS module
230 V AC power supply without the use of an external power supply unit

Comparison of Siemens and SOVIK Kotelník fault signalling

Preset monitored variables

Room temperature
System temperature
System pressure
Gas leak – purchase E2630-LEL
High CO concentration – purchase E2630-CO
Room flooding

Expandable functions

Using the HMI display or web access, certain functions of the Sovik Kotelník fault signalling can be disabled and the capacity used to enable another function.

System top-up (primary and secondary circuit)
System drain-down (primary and secondary circuit)
Refrigerant leak
Fault of a third heat source
High CO concentration – warning / fault
Pulse energy consumption readings
Heat source status (compatibility must be verified)

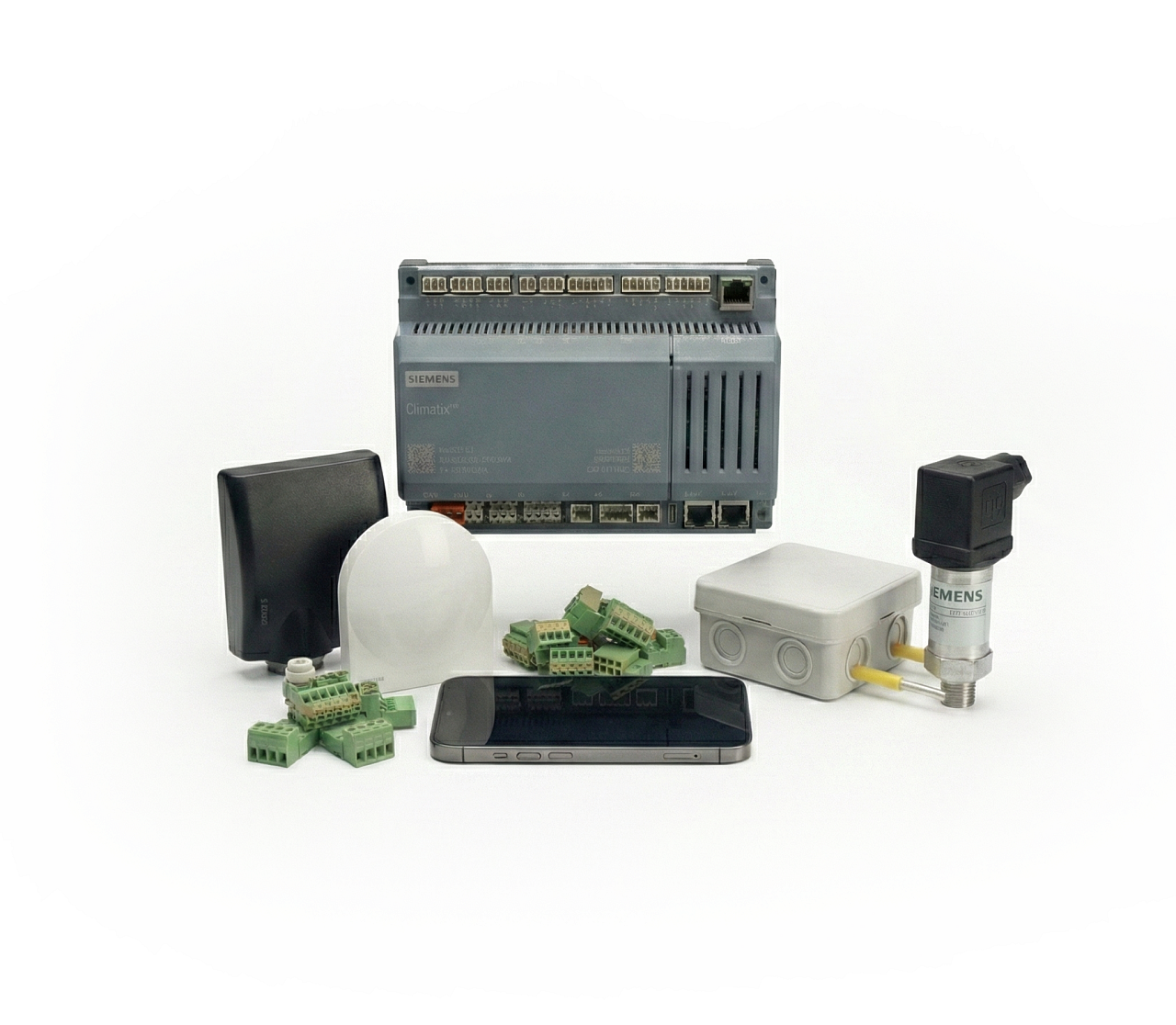

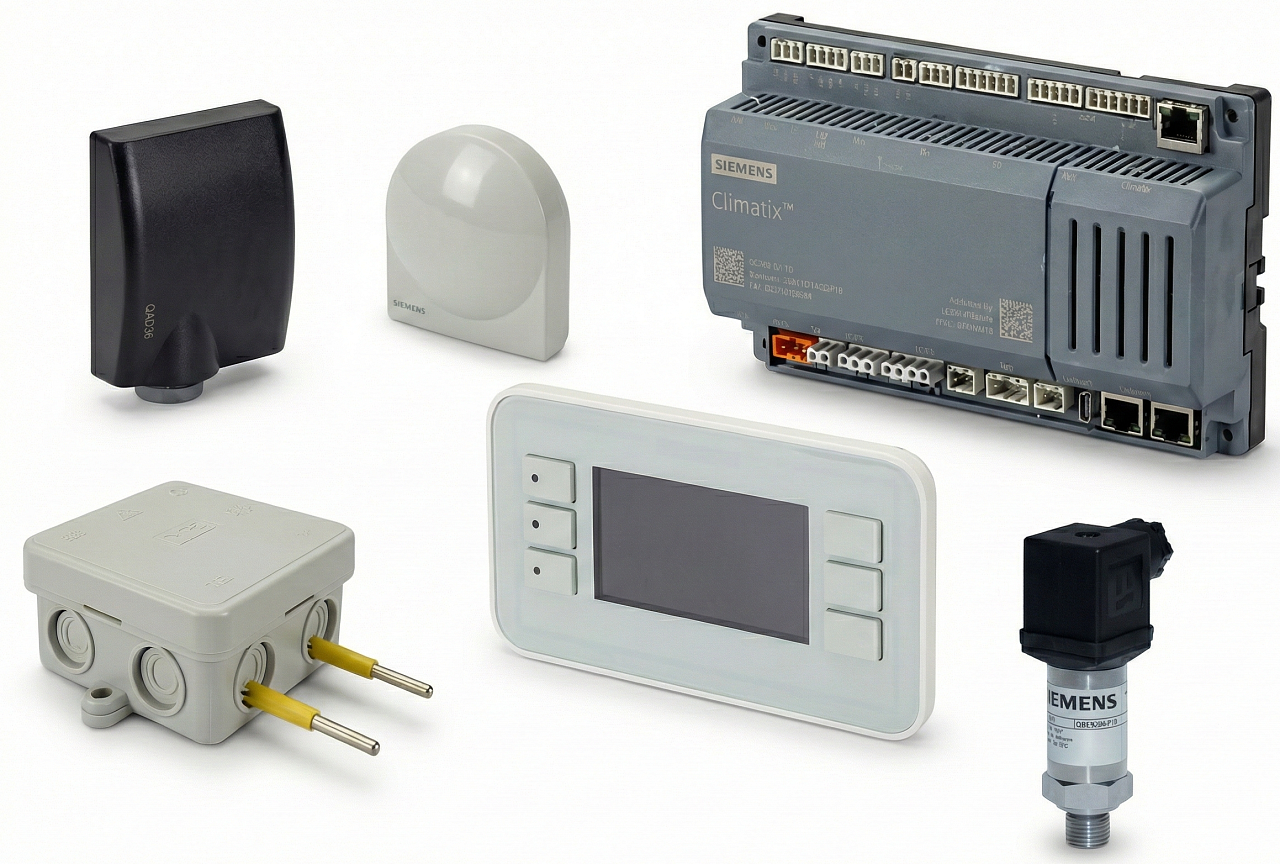

Kit contents

The SOVIK Kotelník system includes everything required for basic fault monitoring in boiler rooms above 100 kW.

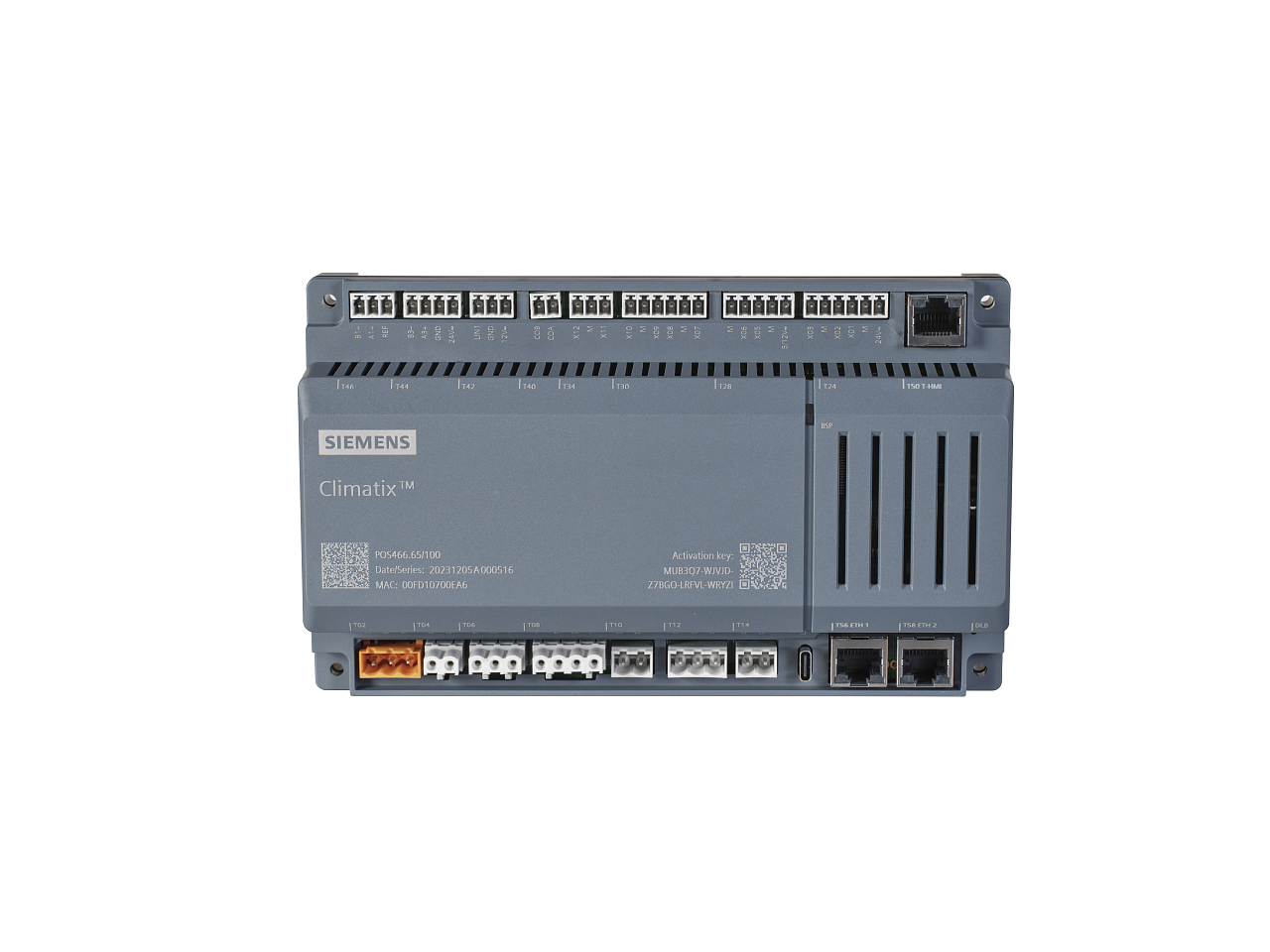

Sovik Kotelník control unit
Terminal block set
Room temperature sensor
Strap-on temperature sensor
Pressure sensor
Flood sensor

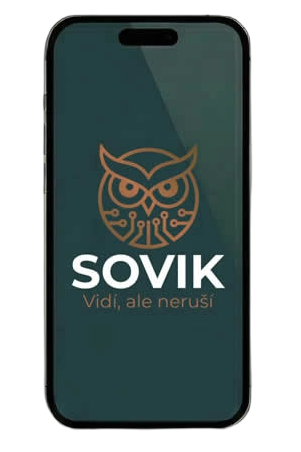

SOVIK mobile app for remote boiler room monitoring

Monitoring on your phone

Download the Sovik app from your app store. The app gives you access to an overview of boiler room faults as well as automatic alerts via push notifications. The app works free of charge on the local network. With a purchased licence, you can use it from anywhere in the world.
