Wet-running pump for solar Wilo Yonos PICO-STG 30/1-7.5 180 (4527214)

Wet-running pump for solar Wilo Yonos PICO-STG 30/1-7.5 180 (4527214)
Extended warranty 5 years

Wet-running pump for solar Wilo Yonos PICO-STG 30/1-7.5 180 (4527214)

WILO
  • Product code: 4527214
  • EAN : 4048482500157
  • Manufacturer code: 4527214
  • Warranty: 5 years

Wet rotor pump for solar Wilo Yonos PICO-STG 30/1-7.5 180 More information

This product is no longer available, as it has been replaced with a new model.

View the new model
Trustpilot

Parameters and catalogs

Connection pump size 2"
Connection type Male thread
Fluid temperature 0...110 °C
Head max 7.5 m
Port-to-port lenght 180 mm
Power 230 VAC
Pressure PN 10
Pump flow 4.4 m3/h
Pump lightness DN 30
Weight 7.00 kg

download

Download PDF

Wet-running circulation pump with threaded connection, block-resistant EC motor, and integrated electronic power regulation.

Application

Primary circulation of solar and geothermal systems

Special features/product advantages

  • Red knob for setting the control mode ∆p-v or fixed speed
  • External speed control via integrated PWM 1 (geothermal energy) and PWM 2 (solar) interfaces
  • Flexible power cable with Wilo connector
  • Pump housing with cathodic electrophoretic dip coating (KTL) protects against corrosion from condensate formation
  • Circular LED indicator for operation and fault indication

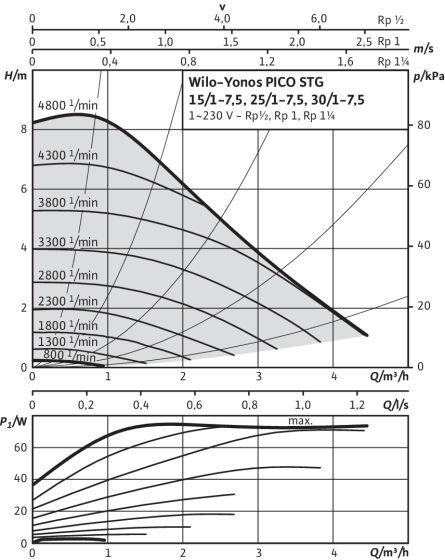

Characteristic curve Δp-v (variable)

Characteristic curve n=constant:

Characteristic curve PWM1 / PWM2 (external signal)
