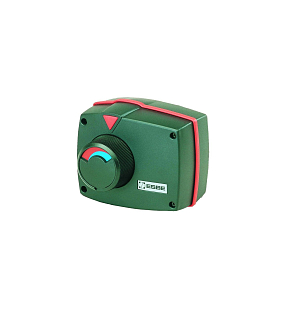

Compact actuator ESBE 62M 24 V for 3-point control of mixing valves, with manual adjustment and microswitch. More information
Out of stock - can be requested
| Control | 3-point |
| Power Supply | 24 VAC |
| Setup time | 240 s |
| Torque | 6 Nm |
| Weight | 0.00 kg |
The ESBE 62M 24V 3P (12000500) actuator is a compact rotary drive designed for controlling ESBE mixing valves (typically up to DN 50 / 2"). Thanks to the reversible motor with limit switches, it operates at a 90° angle and is suitable for standard heating and mixing control applications. The "M" version is equipped with an additional microswitch for signal/control as needed for installation. The actuator can also be manually adjusted using the rotary knob on the front panel (practical, for example, during maintenance or power failure).
Model 12000500 is being replaced in the ESBE range by actuators ARA600(12100900) , which maintain proportional control and are intended for the same types of mixing installations.
| Power Supply | 24 V AC / 50 Hz |
| Control | 3-point (3P) |
| Running time for 90° angle | 240 s (2 min) |
| Max. torque | 6 Nm |
| Power consumption | 2 W |
| Protection rating | IP41 |
| Protection class | II |
| Operating temperature | –15...+55 °C |
| Design | "M" = with additional microswitch |
