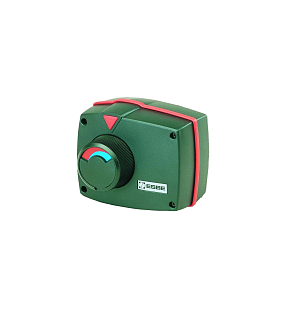

Actuator ESBE 63 24V 3P (12000800)

Actuator ESBE 63 24V 3P (12000800)

Actuator ESBE 63 24V 3P (12000800)

ESBE
  • Product code: 12000800
  • Manufacturer code: 12000800
  • Warranty: 2 years

ESBE Series 63 actuator for precise positioning of mixing valves in heating circuits. Power supply 24 V, 3-point control. More information

This product is no longer available, as it has been replaced with a new model.

View the new model
Trustpilot

Parameters and catalogs

Control 3-point
Power Supply 24 V
Setup time 240 s
Torque 6 Nm
Weight 0.00 kg

The ESBE 62 24V 3P (12000800) actuator is a compact rotary drive designed for controlling ESBE rotary mixing valves (typically up to DN 15–50) within a 90° range. It is suitable for heating and HVAC applications where reliable mixing control using a three-point signal is required. The actuator is reversible (open/close) and also allows manual position adjustment using the control element on the front. The simple design and factory-fitted connection cable are advantageous for installation and servicing.

Model 12000800 is being replaced in the ESBE range by actuators ARA600(12100400) , which maintain proportional control and are intended for the same types of mixing installations.

Main Features

  • Three-point control (open/close) – suitable for mixing applications
  • 90° rotary range for ESBE valves
  • Manual control for service interventions and adjustments
  • Compact design for easy installation

Technical Specifications

Power Supply 24 V AC
Control Signal 3P (three-point)
Operating Range 90°
Run Time 90° 240 s
Torque approx. 6 Nm
Protection Rating IP41
Ambient Operating Temperature –15...55 °C
Connection Cable 1.5 m (factory-fitted)
