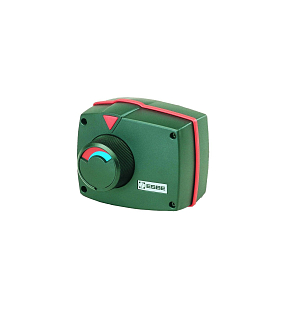

Actuator ESBE 65 230V 3P (12001000)

Actuator ESBE 65 230V 3P (12001000)

Actuator ESBE 65 230V 3P (12001000)

ESBE
  • Product code: 12001000
  • Manufacturer code: 12001000
  • Warranty: 2 years

Compact ESBE actuator for rotary mixing valves, 3-point control, easy manual operation, and reliable performance in heating applications. More information

This product is no longer available, as it has been replaced with a new model.

View the new model
Trustpilot

Parameters and catalogs

Control 3-point
Power Supply 230 V
Setup time 60 s
Torque 6 Nm
Weight 0.00 kg
The ESBE 65 230V 3P Actuator (12001000) is a compact rotary actuator designed for motorizing mixing applications with rotary valves. Thanks to its 3-point (open/close) control, it is suitable for simple and robust control of mixing in heating systems. The actuator operates within a 90° range and allows for manual control if needed, using a pull-and-turn knob on the front. It comes with a connection cable and mounting accessories for ESBE VRG valves.
Model 12001000 is being replaced in the ESBE range by actuatorsARA600(12101200), which maintain proportional control and are intended for the same types of mixing installations.

Main Features

  • 3-point control (open/close) for mixing applications
  • For rotary valves DN15–50, operating range 90°
  • Manual control option (pull-and-turn knob)
  • Compact design for easy installation
  • Supplied with connection cable and mounting set for ESBE VRG valves

Technical Specifications

Power Supply 230 VAC
Control 3-point
Operating Angle 90°
Running Time 60 s
Torque 6 Nm
Ambient Temperature 0...55 °C
Protection Class IP41
Connection Cable 1.5 m
