Rotary actuator for ESBE mixing valves (VRG/VRB/VRH) with reliable operation and manual control option. More information
This product is no longer available, as it has been replaced with a new model.
View the new model| Control | 3-point |
| Power Supply | 230 VAC |
| Setup time | 120 s |
| Torque | 6 Nm |
| Weight | 0.00 kg |

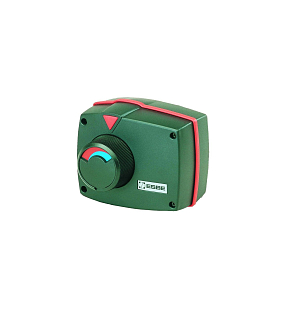

The ESBE 66 (ARA661) actuator is a rotary drive for motorizing rotary mixing valves in heating and cooling applications. It is designed for precise mixing control and stable regulation in standard installations. With an operational angle of 90° and the option for manual control via a pull-out knob, it is also suitable for maintenance interventions. The delivery includes a mounting kit (adapter) for ESBE valves of the VRG, VRB, and VRH series.
Model 12001400 is being replaced in the ESBE range by actuators ARA600(12101300) , which maintain proportional control and are intended for the same types of mixing installations.
| Power Supply | 230 ± 10 % V AC, 50 Hz |
| Control | 3-point (SPDT) |
| Run Time 90° | 120 s |
| Torque | max. 6 Nm |
| Power Consumption | 5 VA |
| Ambient Temperature | -5...55 °C |
| Protection Rating | IP41 |
| Protection Class | II |
| Cable | 1.5 m |
