Reliable 3-point ESBE actuator for motorizing rotary mixing valves in heating and cooling systems. More information
This product is no longer available, as it has been replaced with a new model.
View the new model| Control | 3-point |
| Power Supply | 24 V |
| Setup time | 60 s |
| Torque | 15 Nm |
| Weight | 0.00 kg |

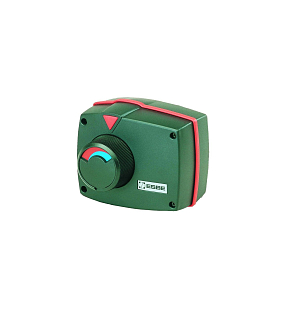

The ESBE 82S 24V 3P actuator is designed for precise control of rotary mixing valves in heating and cooling applications. Thanks to its 3-point control (open/close), it is suitable for standard weather-compensated control and mixing assemblies. The actuator is designed to work with rotary valves in the range of DN 15–150 and allows the working angle to be set over a wide range. For service intervention or positioning, manual control is available.
Model ESBE 82S is being replaced in the ESBE range by actuators ARA600(12050600) , which maintain proportional control and are intended for the same types of mixing installations.
| Power Supply | 24 VAC (±10%), 50 Hz |
| Control | 3-point (SPDT) |
| Running Time 90° | 60 s |
| Torque | 15 Nm |
| Power Consumption | 2 VA |
| Protection | IP54 |
| Ambient Temperature Range | –15...+55 °C |
| Designed for Valves | Rotary valves DN 15–150 |
