Compact ESBE actuator for precise 3-point control of rotary mixing valves in heating and hydronic applications. More information
This product is no longer available, as it has been replaced with a new model.
View the new model| Control | 3-point |
| Power Supply | 24 V |
| Setup time | 240 s |
| Torque | 15 Nm |
| Weight | 0.00 kg |

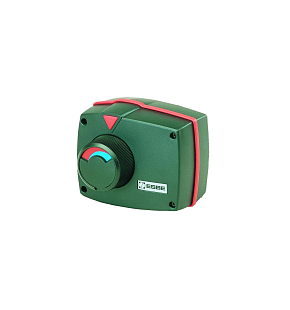

The ESBE 83S 24V 3P actuator is a compact rotary actuator for controlling mixing valves in hydronic and heating systems. In the current ESBE designation, it corresponds to the series 90 – type 93 (3-point control, 24 V AC). The actuator is reversible and uses end switches operated by cams; by adjusting the cams, a wide-angle operating range can be selected. It includes a disconnection for manual control and position indication on the front side.
The ESBE 83S model is being replaced in the ESBE range by actuators ARA600(12051300) , which maintain proportional control and are intended for the same types of mixing installations.
| Power Supply | 24 V AC (±10%), 50/60 Hz |
| Control | 3-point (SPDT) |
| Running Time (90°) | 240 s |
| Torque | 15 Nm |
| Operating Range | 30°–180° (adjustable) |
| Protection | IP54 |
| Ambient Temperature | –15...55 °C |
