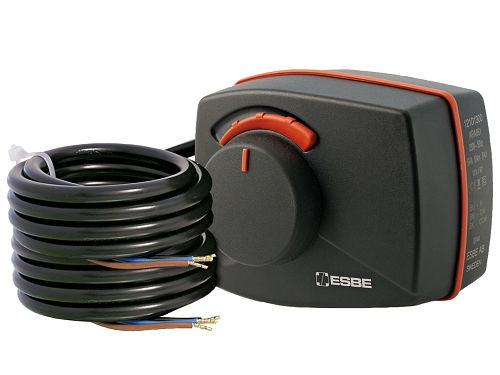

Actuator ESBE ARA636M 230 V (12121000)

Actuator ESBE ARA636M 230 V (12121000)

Product code: 12121000
EAN : 7330193035996
Manufacturer code: 12121000
Warranty: 2 years

Actuator for VRG series mixing valves. Power supply 230V, 2-point, running time 15s. More information

Availability
Out of stock - can be requested
Out of stock

Parameters and catalogs

Auxiliary contact	0...5 mbar
Control	-40...180 °C
Damper size	DN 32
Emergency function	0...25 mbar
Power Supply	230 VAC
Setup time	15 s
Torque	3 Nm
Weight	0.61 kg

Datasheet download

Download PDF

The ARA 600 series actuator is designed for motorizing rotary mixing valves with dimensions DN15-50. The actuator has an operational angle of 90° and the valve can be manually operated if necessary, thanks to the pull-out knob on the front of the actuator. The actuator is equipped with a 1.5m cable.
The actuator is supplied with a mounting kit for ESBE (VRG) valves.
