Actuator ESBE ARA672M 230 V (12101900)

Actuator ESBE ARA672M 230 V (12101900)

Product code: 12101900
EAN : 7330193035941
Manufacturer code: 12101900
Warranty: 2 years

Actuator for VRG series mixing valves. Power supply 230V, 3-point, running time 240s. More information

Availability
Out of stock - can be requested
Out of stock

Parameters and catalogs

Auxiliary contact	0...5 mbar
Control	3"
Damper size	DN 50
Emergency function	0...25 mbar
Power Supply	230 VAC
Setup time	240 s
Torque	6 Nm
Weight	0.60 kg

Datasheet download

Download PDF

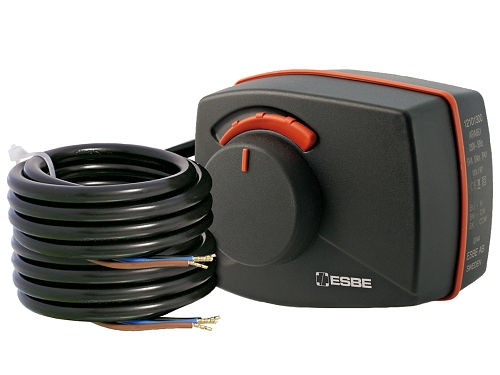

The ARA 600 series actuator is designed for motorizing rotary mixing valves with dimensions DN15-50. The actuator has an operational angle of 90° and the valve can be manually operated if necessary, thanks to the pull-out knob on the front of the actuator. The actuator is equipped with a 1.5m long cable.
The actuator is supplied including a mounting kit for ESBE VRG valves.
