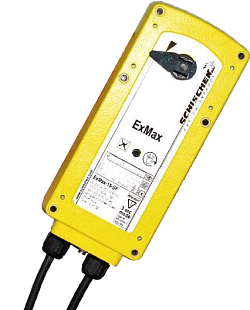

The actuator ExMax-15.30-CY represents a modern solution for controlling regulating and shut-off dampers in explosive environments. Thanks to its robust aluminium housing with IP66 protection, low weight, and compact dimensions, it is suitable even for demanding conditions in the chemical, pharmaceutical, or oil industries.

The actuator is fully certified according to ATEX and IECEx for zones 1, 2, 21, and 22. Users will appreciate the built-in heater for operation down to –40 °C, the safety temperature sensor, and the option for manual adjustment. Programming and selection of the operating time are done directly on-site without the need for special tools.

Main Features

• ATEX and IECEx certification for zones 1, 2, 21, 22
• Compact and lightweight design (only 3.5 kg)
• Durable aluminium housing, stainless steel option available
• Built-in heater and low-temperature protection
• Manual emergency adjustment using a key
• Option to equip with external ExSwitch switches
• Easy on-site torque and operating time setting
• Maintenance-free design with long service life

Areas of Application

Regulation and control of VAV systems, shut-off and regulating dampers, ball valves, or throttle valves in explosive environments (chemical and pharmaceutical industries, refineries, oil platforms).
