Explosion-proof actuator Schischek EXMAX-5.10-CY with a torque of up to 10 Nm. Compact design, ATEX/IECEx certification for zones 1, 2, 21, and 22, suitable for dampers and valves in Ex environments. More information
Out of stock - can be requested
| Atex | Zone 22, Zone 21, Zone 2, Zone 1 |
| Control | 4...20 mA, 0...10 VDC |
| IP Rating | IP 66 |
| Power Supply | 24 VDC, 24 VAC |
| Setup time | 7.5 s, 60 s, 30 s, 15 s, 120 s |
| Torque | 5 Nm, 10 Nm |
| Weight | 5.00 kg |

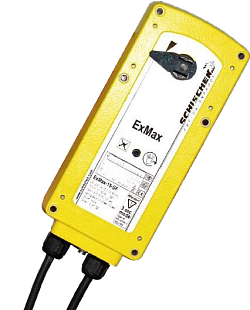

ExMax-5.10-CY is a compact explosion-proof actuator by Schischek designed for controlling shut-off and control dampers in explosive environments. It offers an adjustable torque of 5 or 10 Nm and selectable running times according to application requirements.
The actuator is certified according to ATEX and IECEx for zones 1, 2, 21, and 22. With IP66 protection, a robust aluminium housing, and built-in heating, it is reliable even in demanding operating conditions. Programming and settings are done directly on-site without special tools.
Regulation and control of HVAC dampers, VAV systems, and smaller ball valves in the chemical, pharmaceutical, and petrochemical industries.
