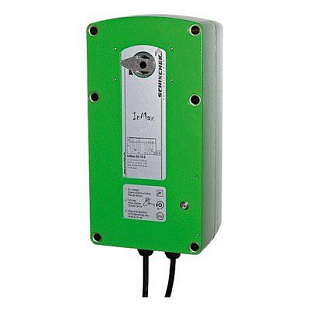

InMax-M represents a range of compact electric rotary actuators designed for the safe and efficient control of regulating and shut-off valves, ball valves, butterfly valves, and other applications in the chemical, pharmaceutical industry, or on oil platforms. The actuators are equipped with self-adaptive power supply (24–240 VAC/DC), a robust enclosure (IP67), built-in heating, and a range of features for demanding operating conditions.

The M construction size offers universal and easily adjustable parameters, including 5 different running times and the option of emergency return using a spring. InMax-M guarantees overload resistance and long service life thanks to quality materials and construction. The InMax-SF range includes industrial actuators with integrated potential-free switches (for angles of 5° and 85°), ensuring precise control of regulating and shut-off valves, and these models also contain a return spring for emergency function in case of power failure.

Key Features:

• Power Supply: Self-adaptive 24–240 VAC/DC.
• Operating Angle: 95° including 5° pre-tension.
• Torque: 30 Nm.
• Enclosure: Robust aluminium enclosure IP67, option for marine coating.
• Weight: Approximately 9.5 kg.
• Operating Temperature: -40 °C to +50 °C.
• Accessories: Option to equip with InSwitch switches and other accessories.
• Auxiliary Switches: Integrated potential-free switches for 5° and 85° rotation angle.
• Emergency Function: Secured by return spring (20 seconds at 90°).
