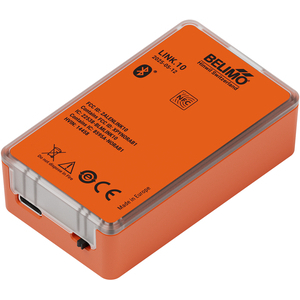

Adjustment Device LINK.10 for Belimo Actuators

Adjustment Device LINK.10 for Belimo Actuators
Extended warranty 5 years

Adjustment Device LINK.10 for Belimo Actuators

BELIMO
  • Product code: LINK.10
  • Manufacturer code: LINK.10
  • Warranty: 5 years

Belimo LINK.10 is a practical service converter for quick configuration and diagnostics of Belimo devices. More information

  • Delivery

    Delivery to Belgium (days are avarages)

    FedEx:
    2.4 workdays € 7,02
    Bpost HD (Home Delivery):
    2.7 workdays € 10,64
    BPost - PP (Pick-up Point):
    3.1 workdays € 9,91
    FedEx Priority:
    1.7 workdays € 12,71
    DHL Express:
    1.1 workdays € 16,94

    DHL Express: 1.1 workdays, € 16,94

  • More than 5 pcs in stock

List price € 720,66
Price excluding VAT € 285,88
Price with VAT 21 % € 345,91
− +

Trustpilot

Parameters and catalogs

Power Supply 24 VAC/VDC
Weight 0.50 kg

Technical sheet download

Download PDF

Instructions download

Download PDF

Belimo LINK.10 is a practical service converter for quick setup and diagnostics of Belimo devices. It enables both wireless and wired communication between the Belimo Assistant 2 and configurable or communicative devices via Bluetooth, NFC, USB, and MP-Bus. With low power consumption and an integrated battery, it ensures convenient work both in the field and at the desk.

The operating temperature range of 0...50 °C covers common conditions for HVAC applications, and the IP20 protection rating is suitable for indoor use. LINK.10 is the ideal choice for commissioning, maintenance, and servicing of Belimo dampers, valves, sensors, and meters.

Main Features

  • Bluetooth 5.0 LE and USB conversion to NFC and MP-Bus for Belimo devices
  • Configuration of powered and non-powered devices (NFC)
  • Integrated battery (charging via USB-C), LED status indication
  • Gecko® film for easy attachment and a safety strap to prevent falling
  • Bluetooth range up to 10 m, NFC up to 2 cm
  • Operation with Belimo Assistant 2 (PC, phone, tablet)

Technical Specifications

Power Supply AC/DC 24 V (50/60 Hz); range AC 19.2...28.8 V / DC 21.6...28.8 V
Power Consumption 2 W
Connection / Interface Bluetooth 5.0 LE, NFC, USB 2.0 (USB-C), MP-Bus (RJ11)
Range / Reading Distance Bluetooth max. 10 m (depending on environment); NFC max. 2 cm
Operating Temperature 0...50 °C (non-condensing)
Storage / Transport Temperature -20...55 °C / -20...80 °C (non-condensing)
Protection / Protection Class IP20, class III (PELV)
Connectors USB-C (power/communication), RJ11 for MP-Bus
Battery 450 mAh, non-replaceable; typically 20–70% recharge ≈ 1 h
Certification / Standards EN 62368-1, EN 60529; EMC: EN 302 489-1/-3/-17, EN 302 291-1/-2, EN 62479, EN 200328; FCC Part 15, ISED RSS Gen/102/210
Dimensions (W × L × H) 45 × 75 × 21 mm
