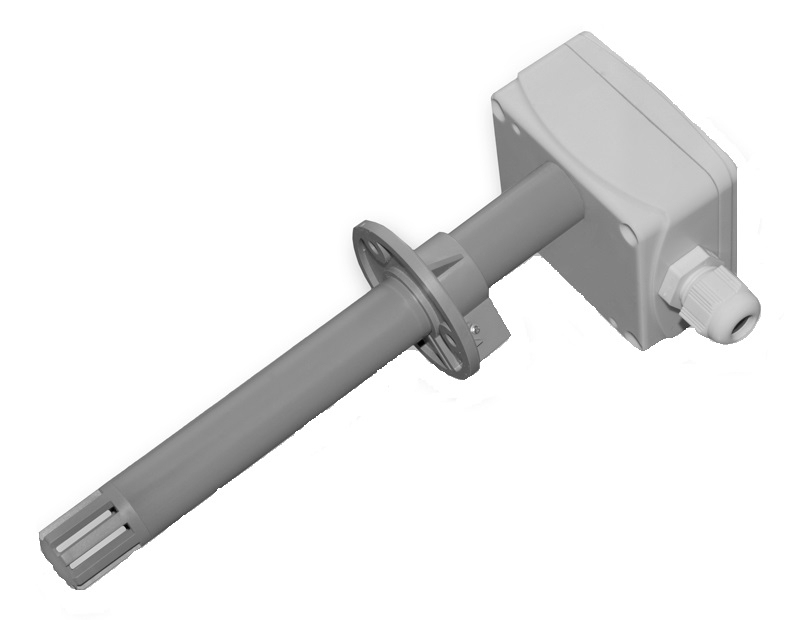

It is designed for measuring air temperature and humidity in air conditioning ducts. It uses a passive resistance temperature sensor (e.g., Pt1000) and an active output for humidity (0-10 V or 4-20 mA). The sensor is suitable for non-aggressive environments and is configured via a USB interface and software.

Main parameters:

• Supply voltage: 15–30 V DC
• Temperature measurement range: 0 to 60 °C
• Measurement accuracy: ±0.5 °C (20-40 °C)
• Humidity measurement range: 0–100% RH without condensation
• Protection: IP65 for electronics, IP40 for the sensor

The sensor is equipped with a dust filter and is easily mountable thanks to the central bracket. Regular cleaning of the filter is recommended for operation, especially in dusty environments.
