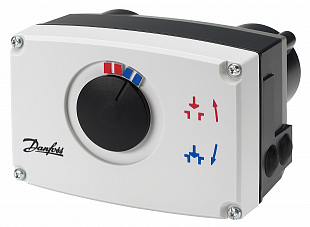

AMV 23, Electric Actuator, Supply Voltage [V] AC: 230

AMV 23, Electric Actuator, Supply Voltage [V] AC: 230

AMV 23, Electric Actuator, Supply Voltage [V] AC: 230

DANFOSS
  • Product code: 082G3009
  • EAN : 5702421510575
  • Manufacturer code: 082G3009
  • Warranty: 2 years

It is designed for three-stage control and is equipped with a safety feature with spring return. More information

  • Delivery

    Delivery to Belgium (days are avarages)

    FedEx:
    2.4 workdays € 0,00
    Bpost HD (Home Delivery):
    2.7 workdays € 0,00
    BPost - PP (Pick-up Point):
    3.1 workdays € 0,00
    FedEx Priority:
    1.7 workdays € 12,71
    DHL Express:
    1.1 workdays € 16,94

    DHL Express: 1.1 workdays, € 16,94

  • In stock 2 pcs

List price € 878,46
Price excluding VAT € 595,32
Price with VAT 21 % € 720,34
− +

Trustpilot

Parameters and catalogs

Frequency 50/60 Hz
IP Rating IP 54
Operating temperature 0...55 °C
Power Supply 230 VAC
Weight 1.92 kg

Technical sheet download

Download PDF

It is designed for three-stage control and is equipped with a safety function with spring return. In the event of a power failure, it will close or open the valve according to the set safety position. This actuator is often used in conjunction with VS2, VM2, VB2, VMV, and AVQM valves.

Technical Specifications

  • Power Supply: 230 V AC
  • Control Signal: three-stage
  • Closing Force: 450 N
  • Speed: 15 s/mm
  • Maximum Medium Temperature: 150 °C

Additional Features

  • Overload Protection – pressure-controlled shutdown
  • Protection Rating: IP54
  • Manual Control and Position Indication
  • Spring Return Function (safety closure)
  • Operating Temperature: 0–55 °C
