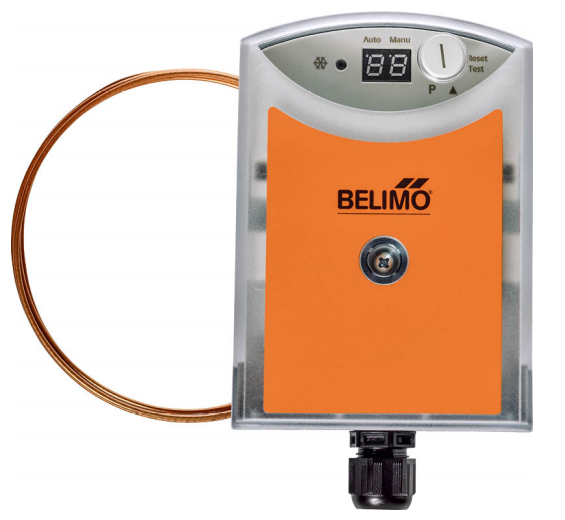

Anti-freeze thermostat Belimo 20DTS-1P3 for temperature measurement in air exchangers, water, and circulation coolers, where there is a risk of freezing that the Belimo anti-freeze thermostat will report.

Features

• easy installation
• output signals DC 0...10 V / AC 24 V
• ambient humidity max. 95%
• Measurement range 1...10°C
• Capillary length 2m
• Automatic and manual reset
• Switching contact - 1x SPDT
• Maximum storage temperature - -30...80°C
• Red LED indicators
• Continuous valve control DC 0...10 V
• Optional accessories: Mounting flange A-22D-A12
