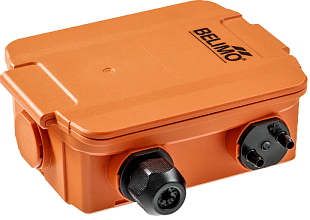

Belimo 22ADP-184L Air Differential Pressure Sensor

Belimo 22ADP-184L Air Differential Pressure Sensor
  • 2 variants
Extended warranty 5 years

Belimo 22ADP-184L Air Differential Pressure Sensor

BELIMO
  • Product code: 22ADP-184L
  • Manufacturer code: 22ADP-184L
  • Warranty: 5 years

Active sensor with LCD display for measuring and controlling overpressure, underpressure, or differential air pressure with adjustable range. More information

  • Availability

    Out of stock - can be requested

  • Out of stock
List price € 469,19
Price excluding VAT € 186,12
Price with VAT 21 % € 225,21

Product variants

− +

Trustpilot

Parameters and catalogs

IP Rating IP 65
Output 4...20 mA, 0...5 V, 0-10 V
Pressure range configurable on the sensor
Weight 0.13 kg

Technical sheet download

Download PDF

Installation download

Download PDF

A sensor suitable for controlling fan pressure and flow, as well as regulating pressure between two spaces. The sensor can be configured with eight pressure measurement ranges and supports multiple output signals. It is factory set to a range of 0...2500 Pa. The package includes 2 plastic channel connection nozzles and 2 meters of tubing (PVC).

Features

  • LCD display with backlight (29 x 35 mm)
  • easy installation
  • output signals DC 0...5 V / 0...10 V, 4...20 mA
  • 8 configurable pressure measurement ranges
  • ambient humidity max. 95%
  • ambient temperature -10...50 °C
  • enclosure NEMA 4X / IP 65

Measurement Ranges

Pressure

-100…100 Pa

0…100 Pa

0…250 Pa

0…500 Pa

0…1000 Pa

0…1500 Pa

0…2000 Pa

0…2500 Pa
