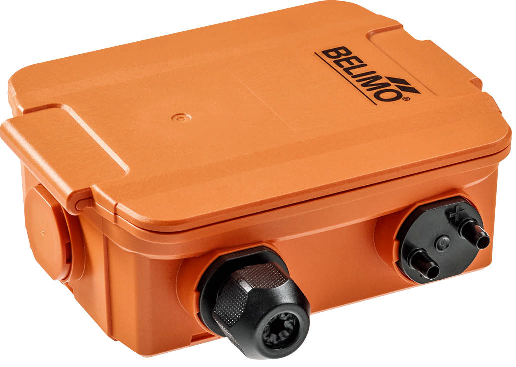

Belimo 22ADP-186L Air Differential Pressure Sensor

Belimo 22ADP-186L Air Differential Pressure Sensor
  • 2 variants
Extended warranty 5 years

Belimo 22ADP-186L Air Differential Pressure Sensor

BELIMO
  • Product code: 22ADP-186L
  • Manufacturer code: 22ADP-186L
  • Warranty: 5 years

Active sensor with LCD display for measuring and controlling overpressure, underpressure, or differential air pressure with adjustable range. More information

  • Availability

    Out of stock - can be requested

  • Out of stock
List price € 469,19
Price excluding VAT € 186,12
Price with VAT 21 % € 225,21

Product variants

− +

Trustpilot

Parameters and catalogs

IP Rating IP 65
Output 4...20 mA, 0...5 V, 0-10 V
Pressure range configurable on the sensor
Weight 0.13 kg

Technical sheet download

Download PDF

Installation download

Download PDF

Sensor suitable for regulating fan pressure and flow, as well as pressure regulation between two spaces. The sensor can be configured for eight pressure measurement ranges and supports multiple output signals. The factory setting is a range of 0...7000 Pa. The package includes 2 plastic connection nozzles for the duct and 2 meters of tubing (PVC).

Features

  • LCD display with backlight (29 x 35 mm)
  • easy installation
  • output signals DC 0...5 V / 0...10 V, 4...20 mA
  • 8 configurable pressure measurement ranges
  • ambient humidity max. 95%
  • ambient temperature -10...50 °C
  • enclosure NEMA 4X / IP 65

Measurement Ranges

Pressure

0…1000 Pa

0…1500 Pa

0…2000 Pa

0…2500 Pa

0…3000 Pa

0…4000 Pa

0…5000 Pa

0…7000 Pa
