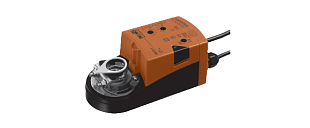

Rotary actuator designed for controlling butterfly valves in air handling systems. It offers direct mounting on an ISO 5211 flange and high functional reliability thanks to overload protection and automatic stop at the end position.

Main Features

• Power Supply: AC 230 V, 50/60 Hz
• Torque: minimum 18 Nm
• Rotation Angle: max. 95° with adjustable stops
• Control: open/close, manual button with automatic return

Specifications

• Running Time: 100–150 s (0–18 Nm)
• Noise Level: max. 45 dB
• Protection Class: IP54
• Operating Temperature: -30 °C to +50 °C
• Weight: 1.3 kg

The AM230 can be installed directly on valves using the WD6 mounting kit. Its design ensures easy maintenance and connection either via cables or screw terminals.
