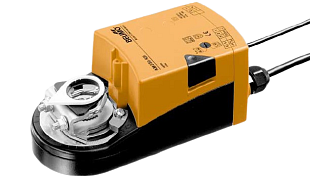

The AM230-SR actuator is designed for controlling air dampers in ventilation and air conditioning systems. It provides modulated control using a standard DC 0...10 V signal, ensuring reliable operation without the need for limit switches. The actuator offers high reliability and easy installation directly onto the damper shaft.

Main Features

• Voltage: AC 230 V
• Torque: 18 Nm
• Running time: 150 s
• Rotation angle: 35–100%, max. 95°
• Control: DC 0...10 V

Electrical Connection

• Power cable: 1 m, 2×0.75 mm²
• Signal cable: 1 m, 4×0.75 mm²
• Connection via terminals or pre-installed wires

Additional Parameters

• Operating temperature: –30 to +50 °C
• Protection class: IP54
• Weight: 1500 g
• Noise level: max. 45 dB(A)

The AM230-SR actuator is designed for maintenance-free operation and allows easy control via a button for manual handling.
