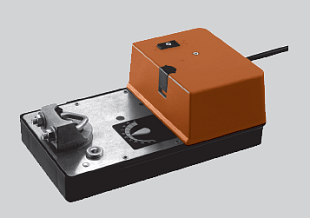

The rotary actuator is designed for controlling butterfly valves in HVAC systems. This actuator provides stable and reliable control with an open-close function. Thanks to its easy flange mounting on the valve and high reliability, it is suitable for commercial and industrial applications.

Main Features

• Power Supply: AC 24 V / DC 24 V
• Control Signal: 1-wire for 24 V
• Torque: min. 30 Nm
• Rotation Angle: mechanically limited to 95°
• Running Time: 135 s ±15 s

Characteristics

• Overload protection without end switches
• Manual operation via push button with automatic return
• Protection class IP54
• Noise level max. 45 dB(A)
• Temperature range: –30 to +50 °C

The GM24 is designed for maintenance-free operation and is the ideal solution for reliable control of butterfly valves.
