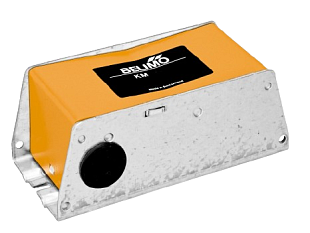

The actuator is designed for dampers with an average size of up to 0.2 m² and provides a minimum torque of 2 Nm. This model is compatible with AC 230 V voltage and offers maintenance-free operation. Connection via a single-pole contact allows for easy installation and flexible control of the damper.

Key Features

• Power Supply: AC 230 V, 50/60 Hz
• Torque: 2 Nm at nominal voltage
• Rotation Angle: Adjustable from 0–100°
• Position Indication: Internal, 0–90°
• Mounting Adapter: For shafts with a diameter of 8–12 mm

Technical Specifications

• Running Time: 15–35 seconds depending on load
• Protection Rating: IP 40
• Sound Power Level: max. 45 dB(A)
• Operating Temperature: –20 to +50 °C
• Weight: 800 g

The KM220 actuator provides reliable operation and easy installation, making it ideal for a wide range of applications in HVAC and heating systems.
