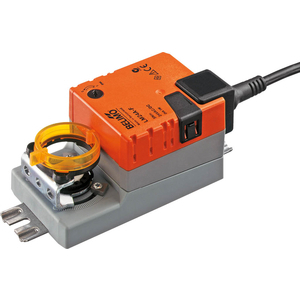

Belimo LM 24 A-MF Actuator (LM24A-F)

Belimo LM 24 A-MF Actuator (LM24A-F)
Extended warranty 5 years

Belimo LM 24 A-MF Actuator (LM24A-F)

BELIMO
  • Product code: LM24A-F
  • Manufacturer code: LM24A-F
  • Warranty: 5 years

The actuator is designed for controlling air handling dampers in buildings. More information

  • Availability

    Out of stock - can be requested

  • Out of stock
List price € 273,56
Price excluding VAT € 108,52
Price with VAT 21 % € 131,31
− +

Trustpilot

Parameters and catalogs

Cable length 1 m
Control 3"
Emergency function 0...25 mbar
Frequency 50/60 Hz
IP Rating IP 54
Power Supply 24 VDC, 24 VAC
Setup time 150 s
Torque 5 Nm
Weight 0.50 kg

Technical sheet download

Download PDF

Installation instructions download

Download PDF

The actuator is designed for controlling air handling dampers in buildings. This model is suitable for dampers up to a size of 1 m² and is equipped with a motor with a torque of 5 Nm. It offers easy installation, manual control, and high functional safety thanks to overload protection and maintenance-free design.

Technical Data

  • Torque: 5 Nm
  • Voltage: AC/DC 24 V
  • Control: open-close, 3-point
  • Mechanical interface: shaped end 8x8 mm
  • Adjustment time: 150 s / 90°

Additional Specifications

  • Protection class: IP54
  • Ambient temperature: -30 to 50 °C
  • Sound power level: 35 dB(A)
  • Maintenance-free design
