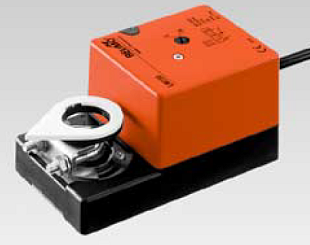

The actuator is designed for controlling air dampers in ventilation and air conditioning systems. It offers reliable position control with single-pole operation and easy installation thanks to universal clamping on the damper shaft.

Key Features

• Torque: min. 4 Nm at nominal voltage
• Rotation angle: max. 95° (adjustable with mechanical stops)
• Operating temperature: –30…+50 °C
• Protection class: IP 54
• Noise level: max. 35 dB(A)

Additional Specifications

• Manual control via button (automatic reset)
• Power supply: AC 230 V with a power consumption of 1 W
• Overload resistance, no need for limit switches
• Maintenance-free operation with high reliability
• Adjustable auxiliary switch
