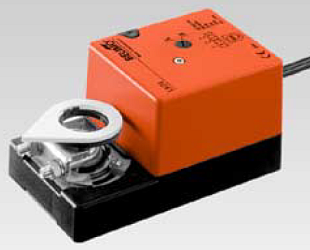

The actuator is designed for controlling air dampers in ventilation and air conditioning systems. It offers reliable damper position control with open/close operation and easy installation directly onto the damper shaft thanks to a universal clamping mechanism.

Key Features

• Torque: min. 4 Nm at nominal voltage
• Rotation angle: max. 95° (adjustable with mechanical stops)
• Operating temperature: –30…+50 °C
• Protection class: IP 54
• Noise level: max. 35 dB(A)

Additional Specifications

• Manual control via button (automatic reset)
• Power supply: AC/DC 24 V with a power consumption of 2 W
• Overload resistance, no need for end switches
• Maintenance-free operation with high reliability
• Adjustable auxiliary switch
