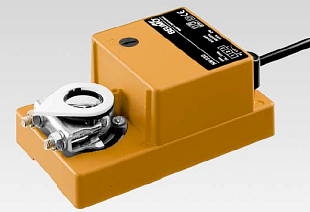

Belimo NM230 Damper Actuator

Belimo NM230 Damper Actuator

BELIMO
  • Product code: NM230
  • Manufacturer code: NM230
  • Warranty: 2 years

The actuator is designed for controlling air dampers up to a size of approximately 1.5 m² in air conditioning and ventilation systems. More information

This product is no longer available, as it has been replaced with a new model.

View the new model

Parameters and catalogs

Weight 0.77 kg

Technical data sheet EN download

Download PDF

The actuator is designed for controlling air dampers up to approximately 1.5 m² in air conditioning and ventilation systems. It provides reliable open/close control with single-pole operation and simple mounting directly onto the damper shaft.

Key Features

  • Torque: min. 8 Nm at nominal voltage
  • Rotation angle: max. 95° (adjustable with mechanical stops)
  • Operating temperature: –20…+50 °C
  • Protection class: IP 54
  • Noise level: max. 35 dB(A)

Additional Specifications

  • Manual control via button for easy function check
  • Power supply: AC 230 V, power consumption 2 W
  • Maintenance-free operation and overload protection
  • Mechanical position indication
  • Possibility of parallel connection of multiple actuators
