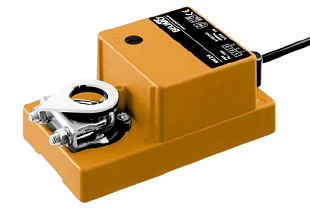

The actuator is designed for controlling air dampers up to a size of approximately 1.5 m² in ventilation and air conditioning systems. This reversible actuator offers high safety and easy installation thanks to its universal clamping mechanism.

Key Features

• Torque: min. 8 Nm at nominal voltage
• Rotation angle: max. 95° (adjustable with mechanical stops)
• Operating temperature: –20…+50 °C
• Protection class: IP 54
• Noise level: max. 35 dB(A)

Additional Specifications

• Manual control via button for easy function check
• Power supply: AC 24 V or DC 24 V, power consumption 2 W
• Maintenance-free operation and overload protection
• Parallel connection of multiple actuators possible
• Mechanical position indication
