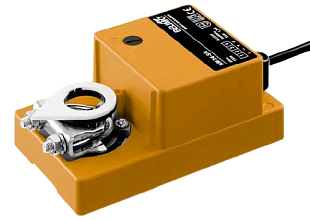

The actuator is designed for controlling air dampers in air conditioning and ventilation systems. It offers multifunctional modulating control with automatic adjustment of angle and running time, ensuring precise damper position setting.

Key Features

• Torque: min. 8 Nm at nominal voltage
• Rotation angle: max. 95° (adjustable with mechanical stops)
• Operating temperature: –30…+50 °C
• Protection class: IP 54
• Noise level: max. 35 dB(A)

Additional Specifications

• Control signal: DC 0…10 V, feedback DC 2…10 V
• Automatic calibration at start-up or on demand
• Manual control via a button for function testing
• Power supply: AC 24 V or DC 24 V, power consumption 1.3 W during operation
• High reliability and maintenance-free operation
