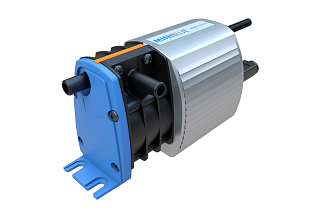

MINIBLUE® H&C TWIN is the ideal pump for condensate removal from air conditioning systems with a cooling capacity from 3.5 kW to 8 kW. Thanks to its compact dimensions and quiet operation, it is suitable for both new installations and retrofits. The device features advanced Hot&Cold temperature sensors for efficient operation control based on evaporator temperature differences.

Sensing Features

• Operates with a temperature difference above 3 °C.
• Sensors located before and after the evaporator or inside and outside the unit.
• Advanced temperature sensing technology.

This is the second smallest pump in the BLUEDIAMOND® range, utilizing revolutionary rotary diaphragm technology. This technology allows for peristaltic performance at the cost of a piston pump, excelling in reliability and minimal vibrations. The pump is capable of continuous operation both wet and dry.

MINIBLUE® H&C TWIN can be easily installed into plastic trunking for refrigerant lines, above ceilings, or into partitions. It is quiet enough to be suitable for residential spaces and is suitable for both new and existing installations.

Technical Specifications:

• Maximum flow rate: 8 litres per hour.
• Maximum head: 8 metres.
• Maximum suction: 5 metres.
• Noise level: Only 21 dBA, ensuring exceptionally quiet operation.
• Power supply: 230 V.
• Performance: 3.5 kW - 8 kW
• Dimensions: 67 × 58 × 138 mm.
