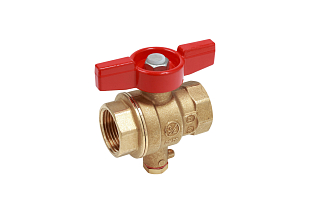

It is a full-bore ball valve with female threads and a port for a measuring probe. It is suitable for water distribution systems, non-aggressive gases and liquid hydrocarbons. It is made of CW617N brass in accordance with ČSN EN 12165. The valve is used in water, gas and non-aggressive liquid installations for precise flow control and measurement using a probe.

Main features:

• Suitable for non-aggressive liquids and gases (except fuel gases in accordance with ČSN EN 437)
• Full-bore design
• Body material: CW617N brass
• Seals: NBR O-rings
• Operating temperature: -20 °C to 120 °C
• Max. operating pressure: 2.8 MPa (for 1”)
• Measuring probe port: M10x1 mm, Ø 6 mm
