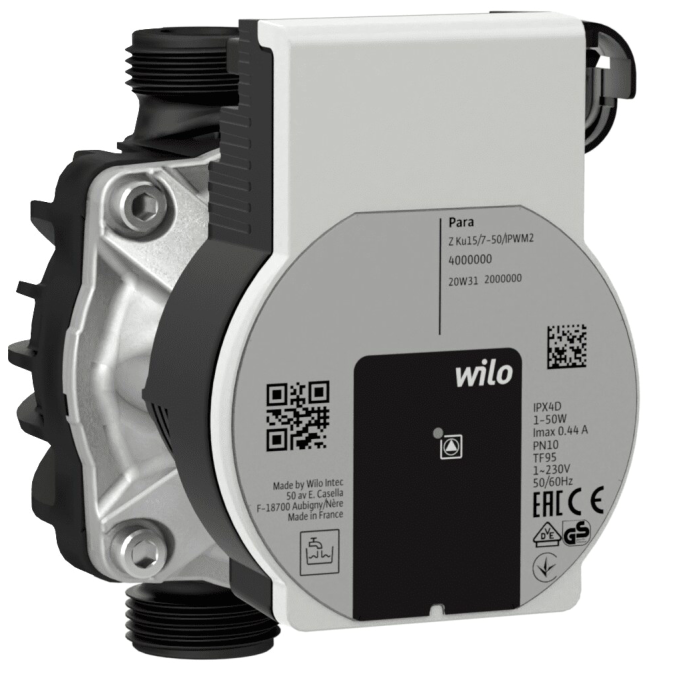

Highly efficient circulation pump for DHW with external iPWM2 control, composite body, G 1, and a length of 130 mm for systems with PN 10 bar. More information
Delivery to Belgium (days are avarages)
DHL Express: 1.1 workdays, € 16,94
| Building length | 130 mm |
| Connection Type | Thread (fitting) |
| Liquid temperature | 3...85 °C |
| Power Supply | 230 VAC |
| Pressure | 10 bar |
| Pump bore | DN 15 |
| Pump connection size | 1" |
| Pump head | 7 m |
| Weight | 1.17 kg |
Datasheet (all Para Z) - ENG download
Download PDFElectronically controlled circulation pump for the circulation of drinking and domestic hot water. The external bidirectional control iPWM2 allows direct transmission of status and flow estimation to the superior system. The composite body is suitable for applications with DHW.
Easy installation thanks to front access to connectors, high system protection due to integrated functions (manual restart, reset to factory settings), and quiet operation with automatic motor power adjustment.
| Power Supply | 230 VAC |
| Control Mode | iPWM2 |
| Power Consumption | 50 W |
| Nominal Diameter (DN) | DN 15 |
| Connection | G 1 thread (suction and discharge) |
| Construction Length | 130 mm |
| Max. Operating Pressure | 10 bar |
| Medium Temperature | +3...85 °C |
| Ambient Temperature | -5...70 °C |
| Protection Rating | IPX4D |
| Body Material | PPA-GF40 (composite) |
