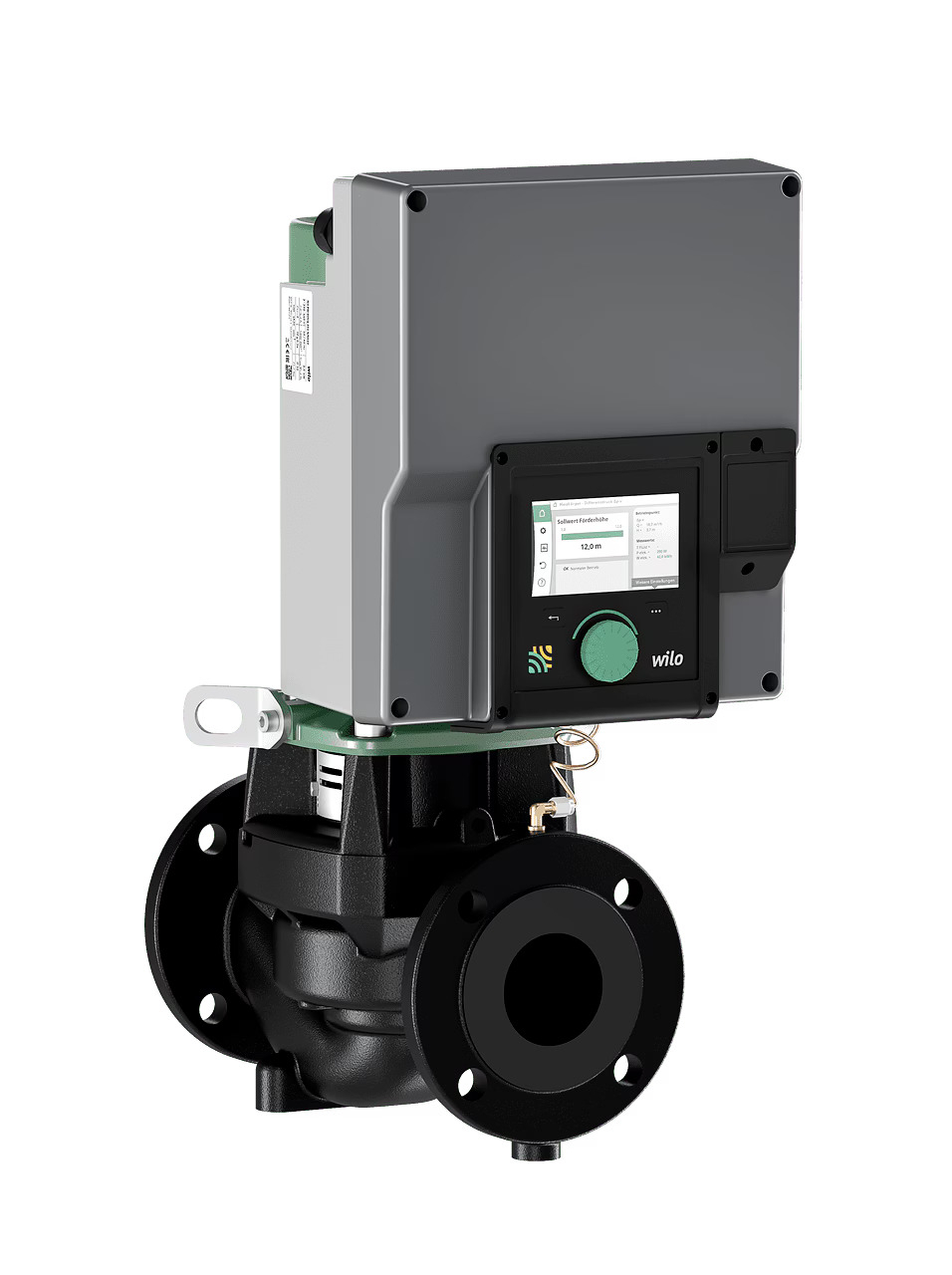

Circulation Pump Wilo Stratos GIGA2.0-I 32/1-15/0.75 (2204722)

Circulation Pump Wilo Stratos GIGA2.0-I 32/1-15/0.75 (2204722)

Circulation Pump Wilo Stratos GIGA2.0-I 32/1-15/0.75 (2204722)

WILO
  • Product code: 2204722
  • EAN : 4062679106120
  • Manufacturer code: 2204722
  • Warranty: 2 years

Highly efficient dry-running circulation pump Wilo with IE5 technology, ideal for heating, cooling, and air conditioning systems with extensive control options. More information

  • Delivery

    Delivery to Belgium (days are avarages)

    FedEx Freight:
    2.3 workdays € 61,71
  • In external stock 2 pcs

List price € 4 443,12
Price excluding VAT € 2 570,40
Price with VAT 21 % € 3 110,18
− +

Trustpilot

Parameters and catalogs

Building length 260 mm
Connection Type Flange
Liquid temperature -20...140 °C
Power Supply 400 VAC
Pressure 16 bar
Pump bore DN 32
Pump connection size DN 32
Pump flow rate 17 m3/h
Pump head 16 m
Weight 39.00 kg

Data sheet download

Download PDF

Wilo Stratos GIGA2.0-I 32/1-15/0.75 is a highly efficient inline pump with a dry-running design, equipped with an electronically commutated IE5 class motor. Thanks to advanced power regulation, mechanical seal, and flange connection DN 32, it represents an ideal solution for demanding heating, air conditioning, and cooling systems.

The pump is designed as a single-stage low-pressure centrifugal pump in a block design, equipped with a spiral casing with an inline construction. The cataphoretic coating of the body and motor flange ensures long-term corrosion protection. The materials used include grey cast iron, stainless steel, and PPS-GF40 composite.

Main advantages of the pump:

  • IE5 efficiency class motor – maximum energy efficiency
  • Integrated power regulation with several modes (dp-v, dp-c, Q-const., T-const., PID...)
  • Wilo-Dynamic Adapt plus and Multi-Flow Adaptation for optimal real-time control
  • Bluetooth connectivity and control via Wilo-Smart Connect and Wilo Assistant app
  • Possibility of connection to BMS systems (Modbus, BACnet, LON, etc.) using CIF modules
  • Integrated 4.3" display with one-button control and clear status display

The pump is suitable for pumping heating water according to VDI 2035, cooling water, and water-glycol mixtures (20...50%), within a media temperature range from –20 to +140 °C. For higher glycol content or operation above 40 °C, it is recommended to use a variant with an appropriate mechanical seal.

Technical Specifications

Pump Type Single-stage centrifugal (Inline)
Power Supply 3~400 V, 50/60 Hz
Motor Power 0.75 kW
Power Consumption 0.8 kW
Construction Length 260 mm
Connection Flange DN 32 (suction and discharge)
Max. Operating Pressure 16 bar
Media Temperature Range –20...140 °C
Protection Class IP55
Body Material Grey cast iron with KTL coating
Impeller PPS-GF40
Shaft Stainless steel
Communication CIF modules (Modbus, BACnet, LON, etc.)
