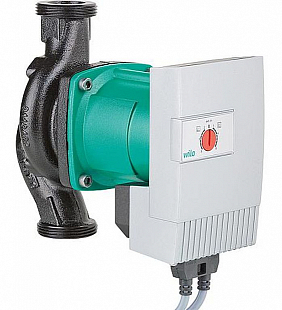

Highly efficient circulation pump designed for use in heating, air conditioning, and cooling systems. Thanks to the electronically commutated motor (ECM) and integrated electronic power control, it offers energy-saving operation with automatic performance adjustment according to the current system requirements.

Key Features:

• Maximum head: 12 m
• Maximum flow rate: 11.3 m³/h
• Medium temperature range: -10...110 °C
• Maximum operating pressure: 10 bar
• Energy efficiency: EEI ≤ 0.20
• Cable: yes
• Boiler / Heat pump (for manufacturers): TacoNova, Thermona

Control Options:

• Control modes: Δp-c (constant differential pressure) and Δp-v (variable differential pressure)
• External control: Analog input 0–10 V for remote speed setting
• Signalling: Volt-free contact for fault reporting

This pump is suitable for use in various applications, including heating, air conditioning, cooling, geothermal, and solar systems. Its compact design with DN 25 (Rp 1) connection allows easy integration into existing systems. With low energy consumption and quiet operation, it is an ideal choice for modern HVAC applications.
