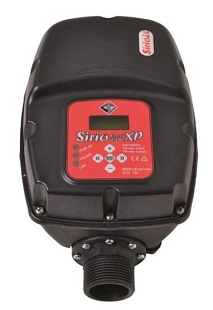

Control Unit with Frequency Converter Wilo SIRIO XP (2865806)

Control Unit with Frequency Converter Wilo SIRIO XP (2865806)

WILO
  • Product code: 2865806
  • EAN : 8006414101977
  • Manufacturer code: 2865806
  • Warranty: 2 years

The WILO Sirio XP control unit with frequency converter can be used with both submersible and surface pumps. More information

  • Delivery

    Delivery to Belgium (days are avarages)

    FedEx:
    2.4 workdays € 0,00
    Bpost HD (Home Delivery):
    2.7 workdays € 0,00
    BPost - PP (Pick-up Point):
    3.1 workdays € 0,00
    FedEx Priority:
    1.7 workdays € 12,71
    DHL Express:
    1.1 workdays € 16,94

    DHL Express: 1.1 workdays, € 16,94

  • In stock 1 pcs

List price € 715,11
Price excluding VAT € 437,34
Price with VAT 21 % € 529,18
+

Parameters and catalogs

IP Rating IP 55
Max. operating pressure 8 bar
Medium Temperature 50°C
Power Supply 230 V
Pressure range 1.5 - 7 bar
Weight 1.89 kg

The WILO Sirio XP control unit with a frequency converter can be used for both submersible and surface pumps. This unit smoothly regulates the motor speed depending on the current flow, ensuring the current pressure throughout the system. As a result, there is no need to use a pressure tank, where the pressure often fluctuates between the switch-on and switch-off pressure. Smooth regulation significantly reduces energy consumption, noise, and extends the system's lifespan by preventing hydraulic shocks and noise in the pipes. Additionally, the control unit is equipped with integrated protection against overvoltage and dry running.

Technical Data

  • Power supply: 230 V/ 50 Hz
  • Connection size: 5/4"
  • Max. motor power: 1800 W
  • Max. medium temperature: 50°C
  • Max. permissible pressure: 8 bar
  • Regulation range of output pressure: 1.5 - 7 bar
  • Protection class IP: IP 55
