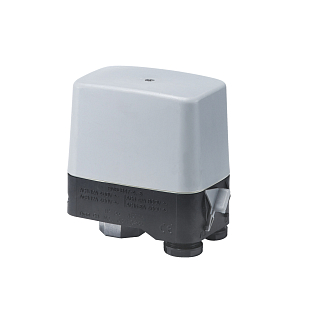

The Danfoss CS pressure switch is designed for the automatic control and protection of pressure systems. It offers… More information
Out of stock - can be requested
| Connection size | G 1/4 |
| Connection Type | Internal thread |
| Control | 4-12bar |
| IP Rating | IP 55 |
| Max. operating pressure | 20 bar |
| Temperature | -20...70 °C |
| Weight | 0.52 kg |
Installation guide download
Download PDFThe Danfoss CS pressure switch is designed for the automatic control and protection of pressure systems. It offers reliable regulation in the range of 4–12 bar and a durable construction with diaphragm pressure sensing. Thanks to its compact design, it is suitable for industrial and refrigeration applications. The switch is equipped with a three-pole TPST contact, automatic reset, and G 1/4" connection. The IP55 protection rating ensures high resistance to moisture and dust, allowing its use even in more demanding operating conditions.
| Regulation range | 4–12 bar |
| Max. test pressure | 20 bar |
| Protection rating | IP55 |
| Contact type | TPST |
| Reset type | Automatic |
| Connection | G 1/4" external |
| Temperature range | –20...70 °C |
| Certification | CE, EAC, RoHS |
