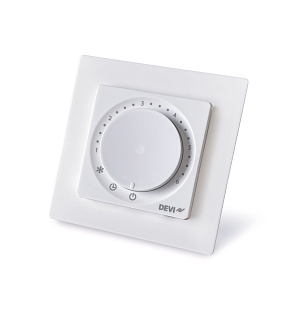

Danfoss DEVIreg Basic Polar White Floor Thermostat 16 A 230 VAC (140F1164)

Danfoss DEVIreg Basic Polar White Floor Thermostat 16 A 230 VAC (140F1164)

DANFOSS
  • Product code: 140F1164
  • EAN : 5703466252123
  • Manufacturer code: 140F1164
  • Warranty: 2 years

Simple floor thermostat DEVIreg Basic in Polar White for comfortable control of electric underfloor heating. More information

  • Delivery

    Delivery to Belgium (days are avarages)

    FedEx:
    2.4 workdays € 7,02
    Bpost HD (Home Delivery):
    2.7 workdays € 10,64
    BPost - PP (Pick-up Point):
    3.1 workdays € 9,91
    FedEx Priority:
    1.7 workdays € 12,71
    DHL Express:
    1.1 workdays € 16,94

    DHL Express: 1.1 workdays, € 16,94

  • More than 5 pcs in stock

List price € 147,57
Price excluding VAT € 91,47
Price with VAT 21 % € 110,68
+

Parameters and catalogs

Control Control knob
Control Pulse Width Modulation
Power Supply 230 VAC
Program Weekly
Setting range 4...45 °C
Weight 0.19 kg

Brochure download

Download PDF

Installation guide download

Download PDF

Data sheet EN download

Download PDF

DEVIreg™ Basic is a floor thermostat for comfortable regulation of electric underfloor heating. The control is designed for easy manual adjustment of temperature and modes, in Polar White finish. Thanks to its modular two-part construction, it is also suitable for 55 × 55 mm frames (when using an adapter). For quick and intuitive settings, the DEVI Control app can be used via Bluetooth (range up to 10 m).

Main Features

  • Regulation according to floor temperature for comfortable heating
  • Simple manual control of temperature and modes
  • Modular two-part construction, adapter option for 55 × 55 mm frames
  • Support for settings via DEVI Control app (Bluetooth)
  • Compliant with EcoDesign (Lot 20)

Technical Specifications

Power Supply 220-240 VAC, 50/60 Hz
Max. Resistive Load 16 A / 3680 W (at 230 V)
Inductive Load cos φ = 0.3 max. 1 A
Sensor NTC 15 kΩ / 25 °C, 3 m (default)
Temperature Setting Range 5...35 °C
Protection Rating IP21
Protection Class Class II
Certification CE, EAC
Dimensions 85 × 85 × 20-24 mm (depth in wall: 22 mm)
Installation Fixed installation only
