Compact pressure switch Danfoss KPI35 for switching, monitoring, and pressure alarm in industrial applications for both liquids and gases. More information
Delivery to Belgium (days are avarages)
DHL Express: 1.1 workdays, € 16,94
| Connection size | G 1/4 |
| IP Rating | IP 55 |
| Pressure | 18 bar |
| Weight | 0.50 kg |

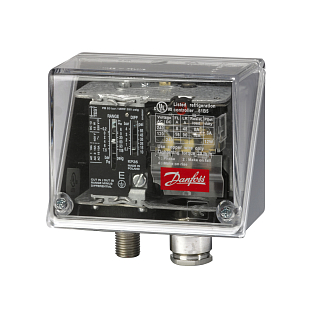

The Danfoss KPI35 pressure switch is designed for control, monitoring, and alarm functions in a wide range of industrial applications. Thanks to its compact dimensions and front access to electrical connections, it is easy to install even in control panels. The KPI design is suitable for liquids and gases. Snap-action contacts help minimize vibration and wear, supporting long-term switching reliability.
| Type | KPI 35 |
| Pressure setting range | -0.2–8.0 bar |
| Pressure differential (DIFF) | 0.4–1.5 bar |
| Permissible operating pressure | 18 bar |
| Max. test pressure | 18 bar |
| Pressure connection | G 1/4A |
| Contacts | SPDT, silver |
| Protection | IP55 (transparent casing) |
| Ambient temperature | -40 to 65 °C (max. 2 h up to 80 °C) |
| Medium temperature | -40 to 100 °C |
