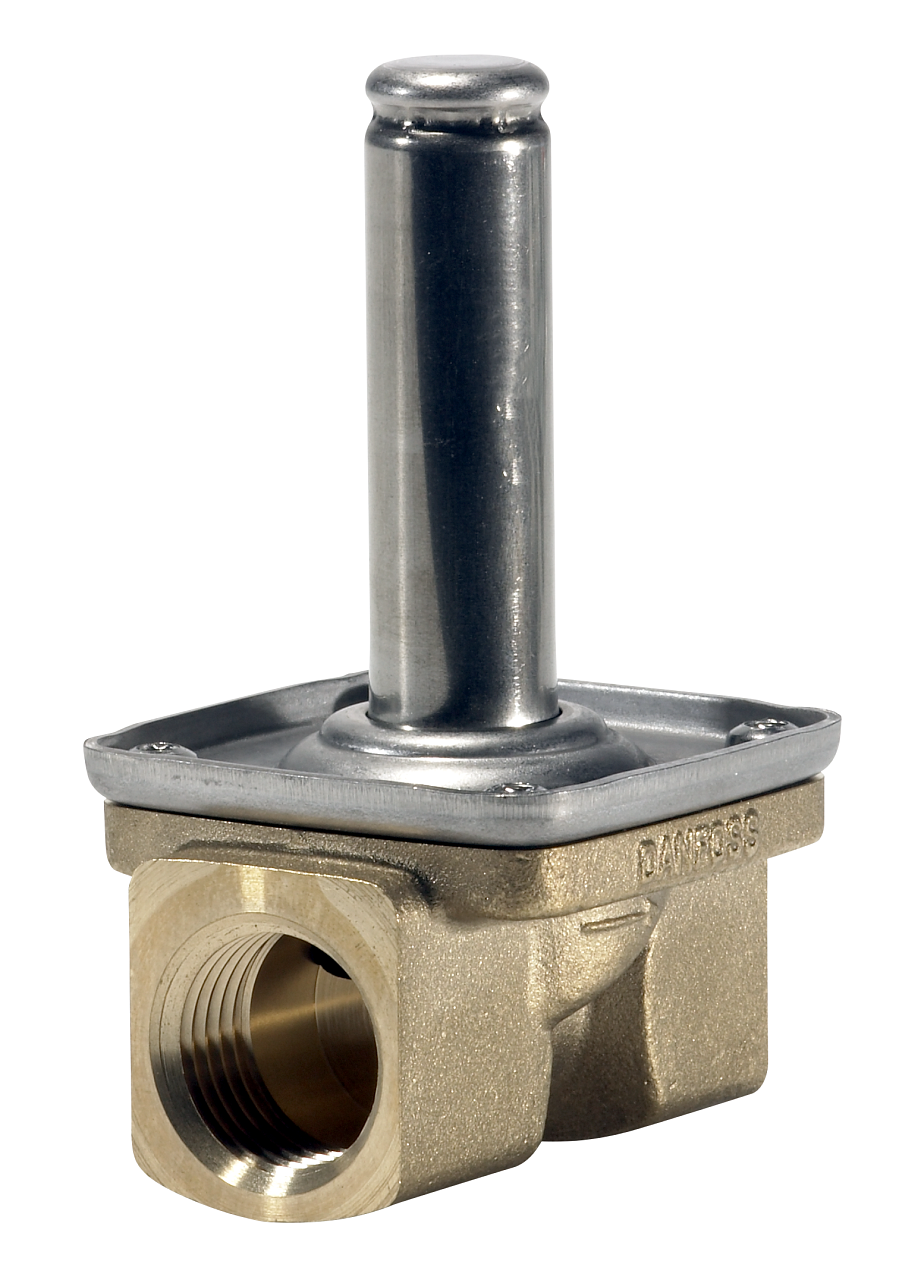

EV220B 10 is a direct-operated 2/2-way solenoid valve. This valve is designed for OEM applications requiring a robust solution and moderate flow. It features EPDM sealing. The valve is suitable for water and mildly aggressive media.

Features

• Flow range: 1.5 m³/h
• Differential pressure: 20 bar
• Media temperature: -30–100 °C
• Ambient temperature: up to 80 °C
• Coil enclosure rating: up to IP 67
• Threaded connections: G 1/2"
• DN 15
• DZR brass construction
• EPDM sealing
