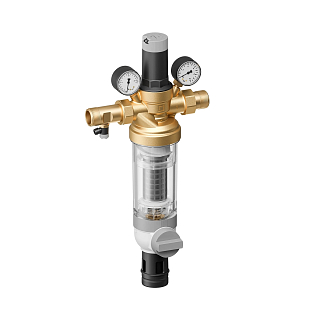

Domestic filtration station with integrated pressure reducing valve, non-return valve and backwash function. Water up to 40°C, outlet pressure 1.5–6 bar, 100 µm filter cartridge, DN25, 1" connection – lead-free version, without shut-off valve. More information
Delivery to Belgium (days are avarages)
DHL Express: 8.1 workdays, € 38,12
| Connection size | R 1" |
| Connection Type | External thread |
| Filter cartridge | 100 µm |
| Max. water temperature | 40 °C |
| Medium | Drinking water |
| Nominal diameter | DN 25 |
| Pressure | 16 bar |
| Weight | 5.70 kg |
Domestic filtration station with an integrated pressure reducing valve, check valve and backwash function in a lead-free design. This station is designed for use in domestic water supply systems and ensures a continuous supply of filtered water. Water at a maximum temperature of 40°C is treated using a fine 100 µm mesh screen, which protects the system from impurities such as rust particles or sand.
The outlet pressure is adjustable from 1.5 to 6 bar, allowing optimum adaptation to the requirements of the distribution system. The filter element is easy to replace, and the entire system is equipped with a check valve that protects against back pressure and water contamination. The system is compact and supplied without an isolating valve for easier maintenance.
| Maximum water temperature | 40°C |
| Outlet pressure | 1.5 - 6 bar |
| Filtration fineness | 100 µm |
| Connection | 1" (DN25) |
| Material | Lead-free brass |
