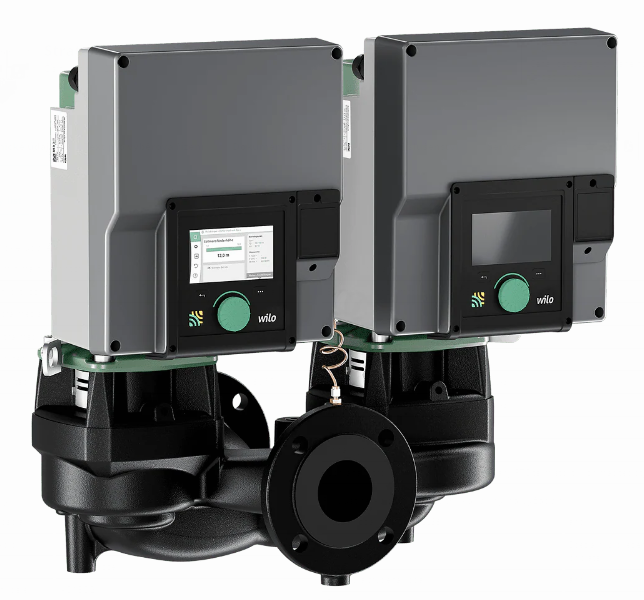

The Stratos GIGA2.0-D 40/1-23/15 pump from Wilo is a highly efficient inline pump with an electronically commutated motor of energy class IE5. It is primarily designed for pumping heating water, cold water, and water-glycol mixtures in heating, air conditioning, and cooling systems. With a minimum hydraulic efficiency index (MEI) ≥ 0.7 and the ability for electronic performance adjustment, it offers optimal energy efficiency and flexibility for a wide range of applications.

Main Features:

• Maximum operating pressure: 16 bar
• Medium temperature range: -20 °C to 140 °C
• Power consumption: up to 1500 W; Nominal motor power: 15 kW
• Motor protection class: IP55; Insulation class: F
• Materials: Pump casing made of grey cast iron, impeller made of PPS-GF40, shaft made of stainless steel

Additional Specifications:

• Installation dimensions: Construction length 280 mm, pipe connection DN 40 on both suction and discharge sides
• Control modes: Offers a wide range of modes for automatic performance adjustment, including pump performance optimization and differential pressure control
• Motor protection: Integrated PTC thermistor temperature sensor
• Equipment and functions: Graphic colour display for easy operation, wireless data transmission and control via Bluetooth with the Wilo Assistant app

The Stratos GIGA2.0-D 40/1-23/15 is the ideal solution for applications requiring high energy efficiency, reliability, and flexibility.
