The illuminated sign is used to alert individuals to an increase in the concentration of monitored toxic gas, for example, in garages, boiler rooms, or warehouses. More information
Out of stock - can be requested
| Cable length | 1.5 m |
| Dimensions (H x W x D) | 725 x 115 x 56 |
| Power Supply | 230 V |
| Side of inscription | Double-sided |
| Temperature | -10...40 °C |
| Weight | 1.60 kg |
Catalog sheet download

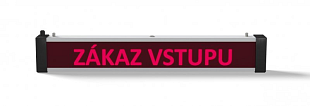

Download PDFThe SVN 720/2 LED serves as one of the possible alarm outputs for detection systems. When the concentration of a monitored toxic gas exceeds a health-threatening level, the detection system delivers an electrical voltage of 230V AC, thereby illuminating the warning sign "No Entry".
The body of the SVN 720 consists of an aluminium profile with an anodized surface finish, red (translucent) and silver (opaque) plexiglass walls, and black plastic side panels.
The LED light sign can be mounted in both indoor and outdoor areas of garages, boiler rooms, and warehouses. Thanks to its design with an IP 54 cover, the LED light sign can be left in the sun without damage from UV radiation or in the rain within the reach of fire sprinklers. You can mount the sign using a bracket on the wall, eyelets, or a cable. All mounting materials are included in the package.
Electrical connection is provided by a 2x0.75 mm² cable - 1.5 m (also included in the package).
