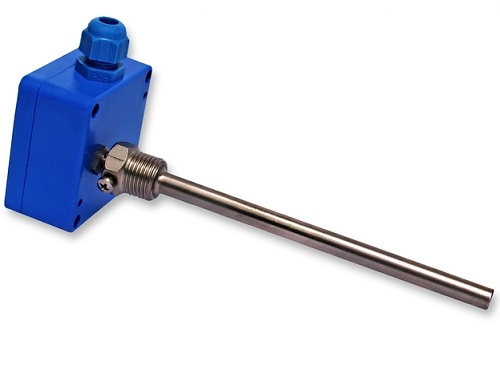

The Regmet resistance sensor is designed for general use in control and regulation systems. It is used for temperature measurement and signalling. The sensor head is made of plastic, and all metal parts are made of stainless steel according to DIN 1.4301. Regmet resistance sensors are suitable for standard, chemically non-aggressive environments. They require no maintenance.

Technical Specifications

• Characteristic Pt 1000, Tk=3850ppm/ °C
• Design for thermowell: (length 100 mm)
• Thermowell diameter: 10 mm
• Measuring range: -30...150 °C
• Accuracy "class B"
• Ambient temperature: -30...80 °C
• Relative humidity: < 80%
• Protection: IP 65
• Recommended cable diameter: 4-8mm
• Connection: Thread G1/2", two-wire connection
