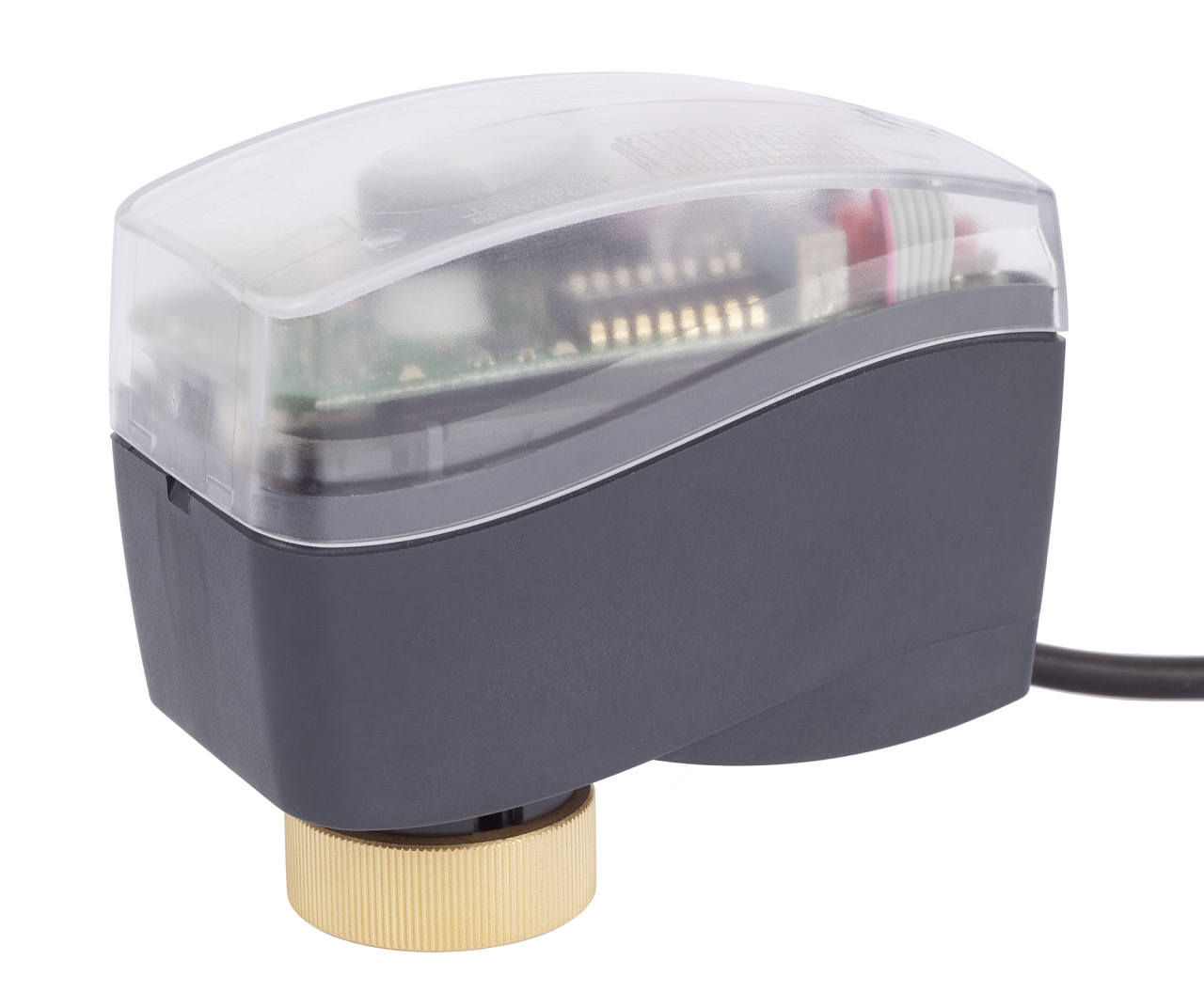

Electric actuator DANFOSS AME 110/120 NL for AB-QM DN 10...32 (082H8059)

Compare
Print
Send to e-mail

Send product by e-mail:Electric actuator DANFOSS AME 110/120 NL for AB-QM DN 10...32 (082H8059)

From email

To email

Additional message

Electric actuator DANFOSS AME 110/120 NL for AB-QM DN 10...32 (082H8059)

Product code: 082H8059
EAN : 5702421556641
Manufacturer code: 082H8059
Warranty: 2 years

Actuator with modulating control AME 110/120 NL for AB-QM valves (DN 10...32), 24V, 0-10V More information

Availability
GLS delivery 3-4 working days. DHL express delivery 1-2 working days.
In stock 1 pcs

Would you like to get a price offer? Contact us

Parameters and catalogs

Adjustment time	60 s
Cable length	1,5 m
Power	24 VAC
Stroke	5 mm
Weight	0.34 kg

Catalog sheet download

Download PDF

AME 110/120 NL actuators are used together with AB-QM self -balancing combined valves in sizes DN 10-32. This servo drive can be used together with convector (fan-coil) units , induction units, small heaters, coolers and also in zone applications where hot or cold water is used as the regulated medium.

Properties:

Gap detection in spindle up position
Modulation signal version
Shutdown with the spindle in the down position protects the actuator and valve against overload
No tools are required for assembly
Maintenance-free design for the entire service life
Low operating noise
Positioning process only
Halogen-free cables
