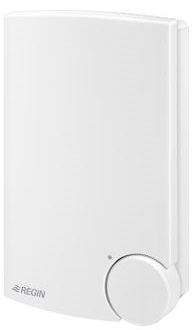

Electric Heating Controller Regin PULSER for controlling electric heating coils, electric panels, etc. Operates on an input signal from an external controller. Supply voltage 400 VAC.

This is a controller with triac control for single-phase or two-phase electric heating. Regulation is carried out using a variable ON/OFF method. The ratio between the on and off time is variable within the range of 0-100% to meet the prevailing heating demand. The devices are connected in series between the power source and the electric heater. The unit is controlled by an external control signal of 0...10 V DC.

Switches the entire load on and off in an on/off manner.

Features

• Power supply 400 VAC
• Wall mounting
• Dimensions: 93 x 153 x 40 mm
• Protection rating IP 20
• Adjustable pulse period 6/60/120 s
