Ex-certified temperature/humidity controller with PID, LCD, and alarm for zones 1, 2, 21, 22; power supply 24 V AC/DC, IP66 protection, external ExPro sensors. More information
Out of stock - can be requested
| IP Rating | IP 66 |
| Power Supply | 24 VDC, 24 VAC |
| Weight | 1.01 kg |

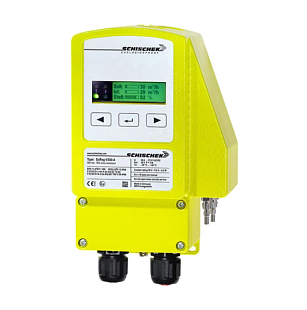

ExReg-D is a compact Ex temperature or humidity controller for use in zones 1, 2, 21, and 22. It offers an integrated PID controller, an alarm with adjustable delay, and an LCD for quick on-site setup. Power supply 24 V AC/DC, protection rating IP66.
It connects to external sensors ExPro-CT (temperature) or ExPro-CF (humidity). Suitable for control in industrial HVAC applications; for the actuator, ExMax-…-CY / ExMax-…-CYF or ExRun can be used. Aluminium body, integrated Ex-e terminal block.
| Measuring range (temperature) | −40...+125 °C (with ExPro-CT sensor) |
| Measuring range (humidity) | 0...100 % rH (with ExPro-CF sensor) |
| Power supply | 24 V AC/DC |
| Protection rating / zones | IP66; zones 1, 2, 21, 22 (ATEX, IECEx) |
| Operating temperature | −20...+50 °C |
We respond to your product queries as quickly as possible, usually within 24 hours.
