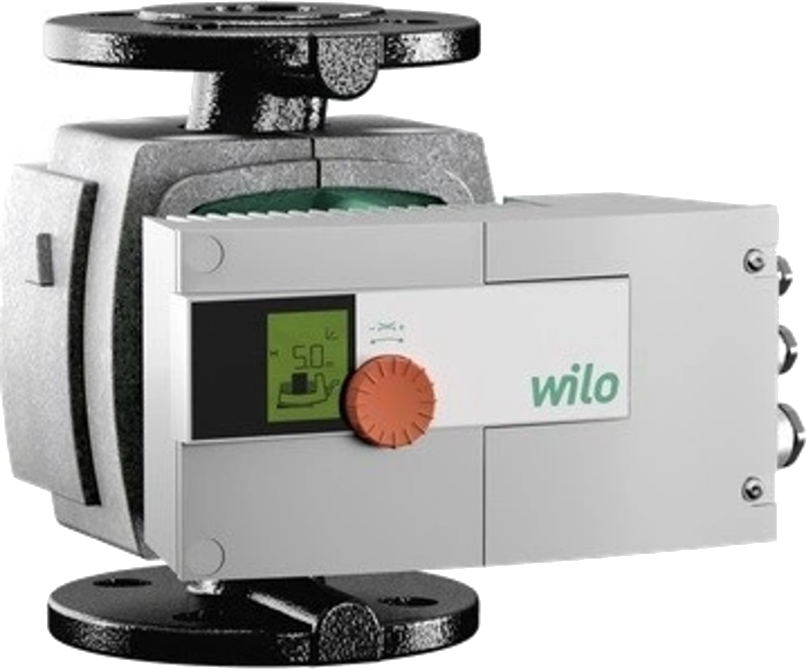

Electronic Circulating Pump Wilo Stratos 65/1-9 PN16 (2069362)

Electronic Circulating Pump Wilo Stratos 65/1-9 PN16 (2069362)

Electronic Circulating Pump Wilo Stratos 65/1-9 PN16 (2069362)

WILO
  • Product code: 2069362
  • EAN : 4016322886860
  • Manufacturer code: 2069362
  • Warranty: 2 years

Electronic circulation pump Wilo STRATOS 65/1-12. For use in heating systems. More information

This product is no longer available, as it has been replaced with a new model.

View the new model
Trustpilot

Parameters and catalogs

Building length 280 mm
Connection Type Flange
Liquid temperature 110 °C
Power Supply 230 VAC
Pressure 16 bar
Pump bore DN 65
Pump connection size DN 65
Pump flow rate 28 m3/h
Pump head 9 m
Weight 19.00 kg

Instructions download

Download PDF

The Wilo Stratos 65/1-9 pump is a highly efficient circulation pump designed for heating and cooling systems. The pump is in a flanged design PN16. It features simple operation via the "Red Button" and a display on the pump. The pump is also compatible with IF modules to support various communication protocols and functions. It is suitable for both industrial and residential applications.

Main Features:

  • Maximum operating pressure: 16 bar
  • Maximum delivery head: 9 m
  • Maximum pumping capacity: 28 m³/h
  • Minimum and maximum medium temperature: -10 °C to 110 °C
  • Energy Efficiency Index (EEI): 0.20

Motor Parameters:

  • Nominal current: 2.6A
  • Minimum and maximum speed: 4600 rpm
  • Power consumption: 590 W
  • Insulation class: F
  • Protection class: IPX4D

Materials:

  • Pump casing: EN-GJL-200
  • Impeller: PPE-GF30
  • Shaft: 1.4122
  • Bearings: carbon, metal impregnated

Dimensions and Weight:

  • Pipe connection at discharge and suction: Flange DN65 PN16
  • Construction length: 280 mm
