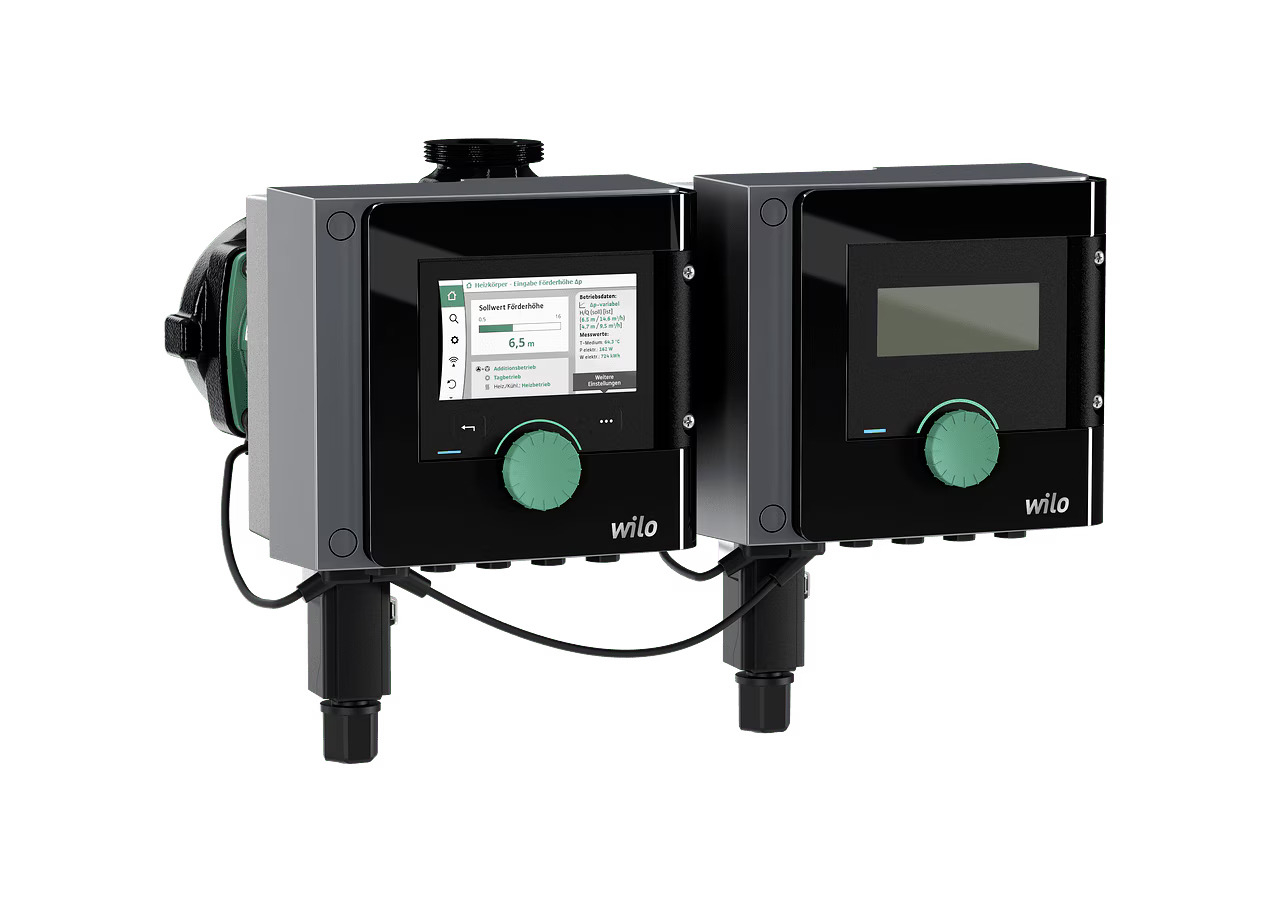

The Wilo Stratos MAXO-D 30/0.5-6 PN10 electronic circulation pump is a highly efficient in-line wet-running twin pump with an electronically commutated motor and electronic power adjustment. It can be used for heating water, cold water, and water/glycol mixtures. It features high durability and a wide range of control functions for optimal adaptation to system requirements.

High Energy Efficiency

Energy Efficiency Index (EEI) ≤0.19 ensures economical operation.

Flexible Control Modes

Offers Dynamic Adapt Plus, constant temperature, constant flow, and PID control modes for optimal adaptation.

Advanced Features and Monitoring

Includes heat/cold quantity recording, automatic shut-off at zero flow (No-Flow Stop), and fault diagnostics.

Integrated Connectivity and Communication

Connection options via Wilo-Connector, analogue/digital inputs, and bus communication (Modbus, BACnet, LON).

Scope of Delivery:

• Pump
• 2x optimised Wilo-Connector compatible with all construction sizes
• 4x cable gland M16x1.5
• Washers for flange bolts M12 and M16 (for nominal connection diameters DN 32 to DN 65)
• 2x Seals for threaded connection
• Brief installation and operating instructions

Optional Accessories:

• CIF Module: Modbus TCP, Modbus RTU, BACnet IP, BACnet MS/TP, LON, PLR, CANopen
• Pt1000 (B) pipe surface contact (for hot water)
• Pt1000 (AA) sensor for installation in immersion sleeve
• Differential pressure sensor

The Wilo Stratos MAXO-D 30/0.5-6 PN10 is ideal for applications requiring high energy efficiency, reliability, and advanced control and monitoring capabilities, such as in heating and cooling systems and district heating.
